Zinc Plating Square Pin

Zinc Plating Square Pin - Precision Engineered Hardware Components

Qingdao Ruirui Machinofacture Co., Ltd specializes in manufacturing high-performance Zinc Plating Square Pin designed for construction machinery applications. Made from premium stainless steel, our pins highlight progressed surface wrapping up through electroplating and electrophoresis forms. With ISO, GS, and CE certifications backing our quality benchmarks, we provide completely customized arrangements that meet correct details. Our generation office keeps up resiliences as tight as ±0.005 mm over 20+ CNC machining centers, guaranteeing dimensional exactness for basic load-bearing applications. Each item experiences thorough quality control, counting 72-hour impartial salt splash testing and hydrogen embrittlement alleviation forms. With 17+ a long time of OEM/ODM encounter, we give factory-direct estimating that's 20-30% lower than exchanging companies.

​​​​​​​Zinc Plating Square Pin Specifications

Advanced Manufacturing Capabilities

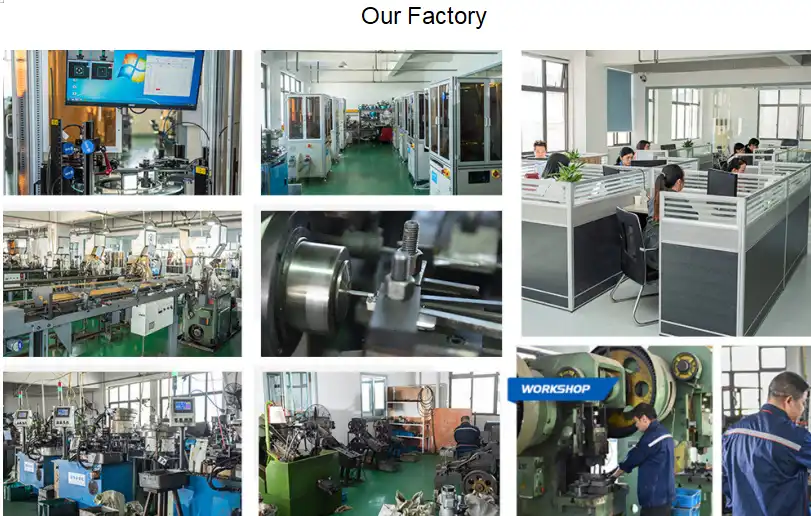

Our one-stop production facility controls every stage from raw material procurement to finished product testing. We operate 20+ CNC machines including 3/4/5-axis milling centers and Swiss-type lathes for complex geometries.

The manufacturing process begins with precision CNC turning to establish the square profile geometry. Our multi-axis turning centers complete parts in a single setup, reducing handling errors. Live tooling capabilities combine milling and turning operations for intricate features.

After machining, each pin undergoes thorough surface preparation. Acid pickling removes oxidation and contaminants before electroplating. The electroplating bath applies zinc coating uniformly across all surfaces, including internal corners of the square profile.

Post-plating processes are critical for performance. We perform mandatory hydrogen embrittlement relief baking within 4 hours of plating completion. This prevents delayed brittle fracture in high-tensile applications where pins exceed 320 HV hardness.

Our chromate passivation layer enhances corrosion resistance significantly. Blue zinc (trivalent chromium) offers RoHS-compliant eco-friendly protection with 48-72 hour NSS performance. Yellow zinc (hexavalent chromium) delivers extended corrosion resistance exceeding 96 hours for harsh environments.

Quality Assurance Standards

Quality control follows ISO 4759-1 Product Grade A standards throughout production. Our inspection protocols ensure every Zinc Plating Square Pin meets demanding industry requirements.

Dimensional Verification:CMM equipment and optical comparators check across-flats dimensions, length, and perpendicularity. Go/No-Go gauges verify compatibility with standard square broaches.

Plating Thickness Testing:X-Ray Fluorescence (XRF) analysis confirms coating thickness meets minimum 8 μm requirements. Multiple measurement points ensure uniform coverage.

Corrosion Performance:Neutral Salt Spray Testing per ASTM B117 validates resistance levels. We monitor both white rust onset (zinc oxidation) and red rust appearance (substrate failure).

Adhesion Verification:Thermal shock testing and burnishing tests per ISO 2819 ensure the zinc layer remains intact under mechanical stress. No peeling or blistering is acceptable.

Material Certification:Full material traceability with Mill Test Certificates (MTC) documenting chemical composition and mechanical properties. PPAP and FAIR reports available for automotive clients.

Our 100% inspection policy means every batch undergoes first article inspection (FAI) and sampling per AQL standards. Full dimensional reports accompany shipments when requested.

Technical Advantages

Understanding plating essentials is fundamental for connector applications. Plating influences terminal life, wear resistance, erosion execution, conductivity, and solderability. Our electroplating prepare makes a metallurgical bond predominant to mechanical coatings.

The square profile geometry gives points of interest over circular pins. Four level surfaces make characterized contact focuses that stand up to revolution beneath stack. This geometric soundness is significant for development apparatus where vibration and affect loads are constant.

Zinc plating serves as a conciliatory anode, securing the fundamental stainless steel substrate. When uncovered to destructive situations, zinc erodes specially, amplifying component benefit life dramatically.

Our handle accounts for dimensional changes amid plating. The zinc layer includes around 0.01-0.02 mm to breadth estimations. We compensate amid machining to guarantee wrapped up pins meet indicated resistances counting this buildup.

White rust (zinc oxide powder) sometimes shows up amid capacity in muggy conditions. This characteristic oxidation demonstrates the defensive layer is working accurately. Appropriate passivation medications and controlled stickiness capacity minimize this restorative issue.

Customization Services

Our R&D group gives comprehensive OEM/ODM bolster all through the improvement cycle. We help with design-for-manufacturability (DFM) examination to optimize your item for generation efficiency.

Material Selection:Beyond standard stainless steel, we handle carbon steel, combination steel, and forte materials based on application prerequisites. Fabric suggestions consider quality, erosion environment, and taken a toll factors.

Geometric Customization:Square measurements, length, chamfers, and radii adjust to your get together needs. Our Swiss-type turning handles length-to-diameter proportions up to 20:1 for expanded pins.

Surface Treatment Options:Choose from blue zinc, yellow zinc, zinc-nickel amalgams, or hot-dip galvanizing. Each offers distinctive erosion resistance levels and fetched profiles.

Secondary Operations:Thread cutting, cross-drilling, knurling, and groove machining coordinated consistently into generation. One-stop preparing dispenses with coordination with different suppliers.

Volume Flexibility:Zero MOQ for model improvement permits plan approval some time recently committing to generation tooling. Bar bolstering computerization underpins high-volume orders efficiently.

Our designing group reacts to cite demands inside 48 hours. We give point by point fetched breakdowns, lead time gauges, and specialized suggestions based on your specifications.

Application Guidelines

Construction machinery environments demand robust fastening solutions.Zinc Plating Square Pin components excel in applications requiring:

Alignment and Location:Square geometry prevents rotation in mounting holes, maintaining precise positioning under vibration. Critical for articulated joints and adjustment mechanisms.

Load Transfer:Flat contact surfaces distribute shear loads more effectively than round pins. This reduces localized stress concentrations that cause premature wear.

Retention Systems:Pins work with cotter pins, clips, or threaded fasteners for secure retention. The square profile provides multiple installation options.

Corrosion Resistance:Zinc plating ensures against dampness, street salt, and mechanical chemicals common in development situations. Standard assessment and upkeep amplify benefit life.

For marine situations, standard zinc plating requires supplementary assurance. We suggest zinc-nickel amalgam plating advertising 1000+ hour salt splash execution. Then again, hot-dip galvanizing gives thick defensive layers, in spite of the fact that dimensional resistances gotten to be less precise.

High-strength applications over 320 HV hardness require cautious consideration to hydrogen embrittlement anticipation. Our required post-plating preparing prepare diffuses caught hydrogen iotas that might cause postponed break beneath maintained loads.

FAQ

Q: What is the distinction between Blue Zinc and Yellow Zinc for the product?

A: Yellow zinc customarily employments hexavalent chromium (Cr6+) advertising higher erosion resistance, frequently surpassing 96 hours in salt splash testing. Blue zinc regularly employments trivalent chromium (Cr3+), which is eco-friendly and RoHS compliant, ordinarily giving 48-72 hours NSS execution. Blue zinc meets cutting edge natural directions whereas yellow zinc offers expanded security for cruel environments.

Q: Can the item be utilized in marine environments?

A: Standard commercial zinc plating is deficiently for long-term saltwater introduction or submersion. For marine applications, we suggest high-build zinc-nickel amalgam plating or hot-dip galvanizing. Note that hot-dip forms may influence dimensional resiliences due to thicker coating layers. Counsel our building group for application-specific recommendations.

Q: How do you anticipate hydrogen embrittlement in high-strength the product?

A: Quickly after corrosive pickling and electroplating, pins experience de-embrittlement heating at 200°C for 4 hours. This handle must happen inside 4 hours of plating completion to diffuse caught hydrogen molecules viably. This step is obligatory for pins surpassing 320 HV hardness to anticipate deferred fragile break.

Q: Why does my products show white powder after storage?

A: This white powder is zinc oxide, commonly called "white rust." It results from moisture exposure without adequate airflow during storage. Importantly, this indicates the zinc coating is working correctly as a sacrificial anode, protecting the underlying steel. Improve storage conditions with lower humidity or enhanced passivation treatments to minimize this cosmetic issue.

Q: What tolerances are achievable for the square profile after plating?

A: We typically maintain ISO 4759-1 Product Grade A tolerances. However, designers must account for plating thickness buildup of approximately 0.01-0.02 mm when specifying mating hole dimensions. Our machining process compensates for this coating thickness to ensure finished parts meet your assembly requirements.

Contact Us

Ready to source Zinc Plating Square Pin precision hardware components? Contact our engineering team at kshdhardware@qdkshd.com for technical consultation, quotes, and DFM analysis. Factory-direct pricing with global shipping available.
