Premium Hooks for Roof Top Mounting Hook: Engineered for Precision Solar Installation

When you're securing a solar PV system to a tiled roof, you need more than just standard fasteners. Hooks for Roof Top Mounting Hook from Qingdao RuiRui Machinery Manufacturing Co., Ltd. deliver enterprise-grade performance through precision CNC machining with tolerances down to ±0.005mm. Our high-grade stainless steel (SUS304/316) hooks feature multi-axis adjustability to compensate for uneven roof structures, load capacities up to 2.5kN verified by static testing, and non-invasive installation design that protects your roof's waterproofing integrity. With 17+ years of OEM/ODM expertise and ISO 9001:2015 certification, we manufacture 100+ piece batches with 25-45 day delivery through our one-stop production facility.



What Makes Our Roof Mounting Solutions Different

You face real challenges when installing solar arrays on pitched roofs. Tile breakage. Water intrusion. Misaligned rails that stress your panels. That's why we engineer product as specialized structural interface components, not simple brackets.

Our hooks bridge the gap between your roof's skeleton and the mounting rails. They fasten securely to wooden rafters or steel purlins while extending from beneath the tiles. This means you're anchoring to the building's structural core without drilling through the waterproofing layer.

Built for Real-World Conditions

Your installation site isn't a laboratory. Coastal salt spray corrodes inferior materials. Alpine snow loads exceed 2.0kN/m². Summer heat cycles test every connection point.

We address these realities through material science and geometry:

· SUS304 stainless steel for standard environments (96%+ durability over 25 years)

· SUS316 marine-grade for coastal zones within 500m of saltwater

· 4-5mm wall thickness distributing uplift forces across wider bearing surfaces

· Precision-forged geometries eliminating stress concentration points

Our Swiss-type CNC turning creates complex profiles in single setups. This maintains dimensional consistency across thousands of units—critical when your installers are working across multiple roof planes.

Technical Specifications That Matter

You need specifics, not marketing claims. Here's what our manufacturing capabilities deliver:

Parameter	Specification	Your Benefit
Material Grade	SUS304 / SUS316 Stainless Steel	25-year corrosion resistance
Machining Tolerance	±0.005mm (Swiss CNC)	Perfect rail alignment
Load Capacity	1.4kN - 2.5kN (static tested)	Handles extreme wind/snow
Adjustability Range	Vertical: 30-50mm (model dependent)	Compensates for uneven rafters
Surface Treatment	Passivation / Electro-polishing	Enhanced coastal durability
Fastening Method	2-3 x 6.3x80mm SS wood screws	Deep structural embedment
MOQ	100 pieces	Accessible for mid-size projects
Production Capacity	20+ CNC machines, 24/7 operation	Fast turnaround on urgent orders
Quality Certification	ISO 9001:2015	Documented process control
Customization	Full OEM/ODM with DFM support	Tailored to your roof profiles

Where Precision Mounting Hooks Solve Critical Problems?

Residential Pitched Tile Installations

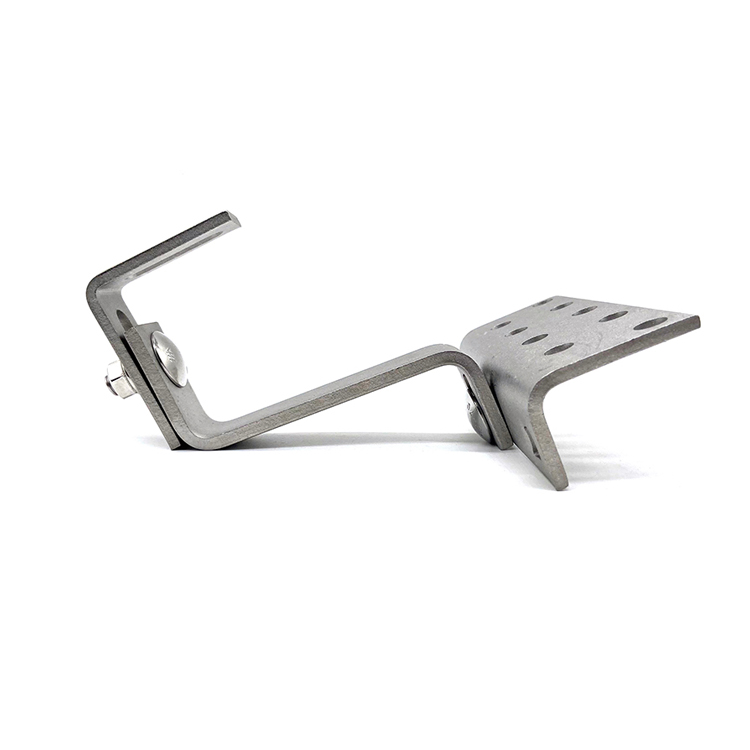

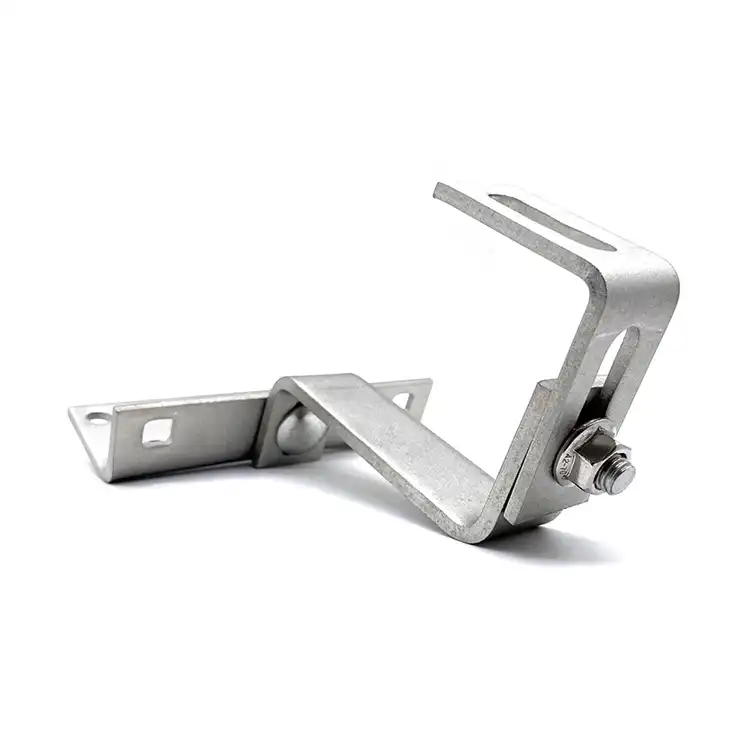

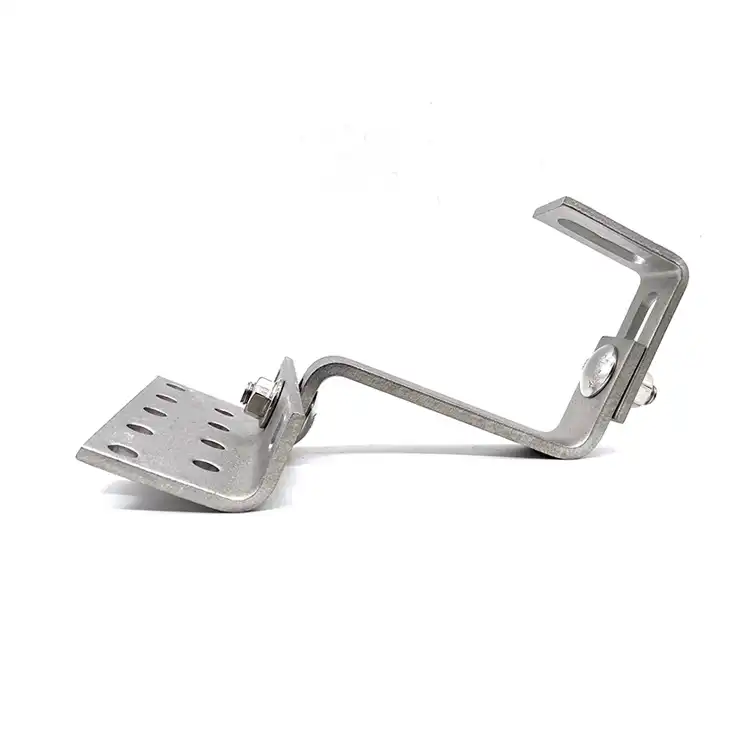

Your homeowner clients demand aesthetics and reliability. Roman tiles, pantiles, and slate each present unique profiles. Our double-adjustable Hooks for Roof Top Mounting Hook navigate high-profile curved tiles without contact pressure that causes cracking.

The vertical adjustment lets your crew level rails across rafters that vary by 20-30mm—common in older residential construction. This prevents panel stress and maintains warranty compliance.

High-Corrosion Coastal Projects

Within 500 meters of coastline, standard hardware fails within 3-5 years. Salt-mist concentration accelerates electrolytic corrosion at connection points.

We supply SUS316 hooks with enhanced molybdenum content. Our passivation treatment creates a chromium-oxide layer that self-heals minor scratches. This delivers the 25-year service life your B2B solar developers contractually require.

Alpine High-Load Environments

Heavy snow zones demand reinforced components. Our 5mm+ thickness hooks with wider base plates distribute downward loads exceeding 2.0kN/m² across the rafter's bearing surface.

This prevents structural fatigue during accumulation cycles. Your system stays secure when competitors' installations experience rail deflection or dangerous module-to-roof contact.

Commercial Retrofit Applications

Flat tile and slate roofs on commercial buildings need low-profile solutions. Our non-adjustable hooks minimize vertical gaps—reducing wind resistance and maintaining the building's visual lines.

For B2B installers managing large-scale retrofits, our factory-direct pricing delivers 20-30% cost savings versus trading companies. No middlemen means better margins on your bids.

Why Manufacturing Quality Determines Field Performance

You've seen hooks that look identical in photos but fail during installation. The difference lies in manufacturing precision you can't photograph.

CNC Precision vs. Stamped Components

Our 20+ CNC machines create each hook through subtractive manufacturing. We start with solid stainless bar stock and remove material to achieve final geometry. This maintains grain structure integrity—critical for fatigue resistance.

Stamped hooks use progressive dies that stretch metal, creating weak points at bend radii. Under cyclic wind loads, these become crack initiation sites.

Quality Control at Every Stage

Your reputation depends on components that perform across thousands of installations. We implement:

· First article inspection (FAI) verifying dimensional accuracy before production runs

· CMM measurement confirming critical mounting hole positions within ±0.01mm

· Batch sampling per AQL standards catching process drift before defects reach you

· Material certification documenting alloy composition for traceability

Every batch ships with full dimensional reports. When building inspectors request documentation, you have verifiable data—not promises.

Customization That Matches Your Roof Profiles

Standard hooks serve standard roofs. Your projects aren't standard.

Our R&D team provides design-for-manufacturability (DFM) analysis within 48 hours of receiving your CAD files (STEP, IGES, X_T formats). We identify:

· Optimal arm length for your specific tile profile clearance

· Base plate geometry matching your rafter dimensions

· Adjustment range requirements for your typical roof variance

· Material grade recommendations based on your installation geography

For prototype development, we have zero MOQ. Test our custom designs on pilot installations before committing to production volumes.

Common Questions Installers Ask

Can these hooks work with my existing rail systems?

Yes. We manufacture hooks compatible with major rail profiles (40x40mm, 35x35mm). Share your rail specifications during quote requests for compatibility verification.

Do I need to cut tiles during installation?

Slight grinding (chamfering) of the tile underside is often required. This ensures the hook sits flush against the rafter without lifting the tile above it—preserving the waterproofing overlap.

What's the difference between adjustable and fixed hooks?

Adjustable hooks offer 30-50mm vertical range via set screws or slotted mounting holes. Use them when rafter heights vary. Fixed hooks work for newer construction with level structural planes—they cost less and install faster.

How do I determine load capacity requirements?

Calculate based on your local wind zone and snow load ratings. Most residential installations need 1.4-1.8kN capacity. Alpine or coastal high-wind zones require 2.0-2.5kN rated hooks. We provide load certification documentation.

What's your lead time for custom orders?

Prototypes ship in 1-2 weeks. Production runs of 500-2000 pieces take 4-7 weeks including quality inspection. We prioritize urgent orders—70% ship on time even with expedited requests.

From Raw Material to Roof-Ready Components

You need confidence in our supply chain, not just the final product.

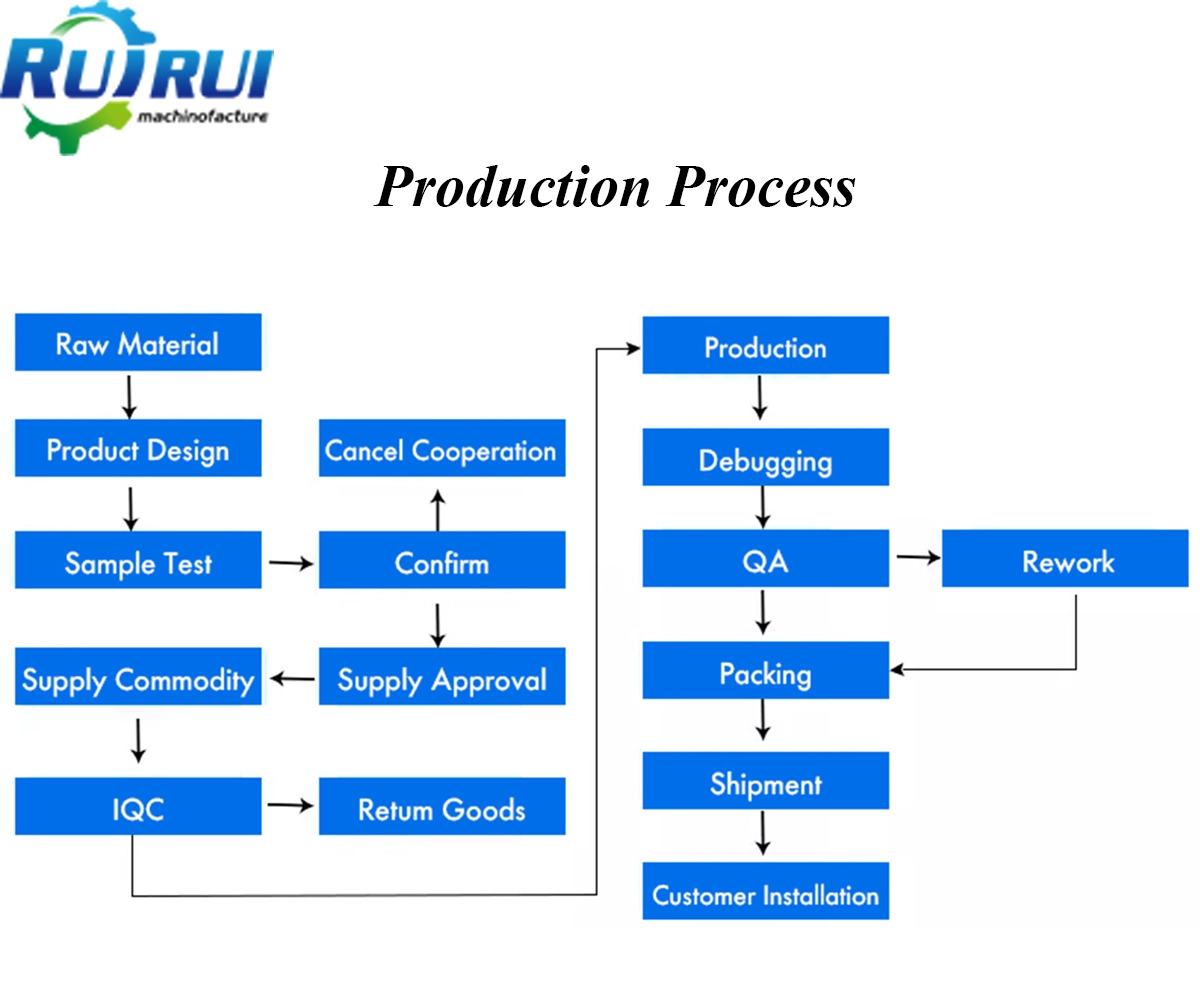

We control the entire process:

1. Material Procurement: Direct relationships with certified stainless steel mills ensure consistent alloy quality and traceability

2. CNC Machining: Multi-axis turning and milling create complex geometries in single setups, reducing handling errors

3. Surface Treatment: In-house passivation and electro-polishing lines—no outsourcing delays

4. Quality Testing: CMM inspection, torque testing, and salt-spray chamber validation before packaging

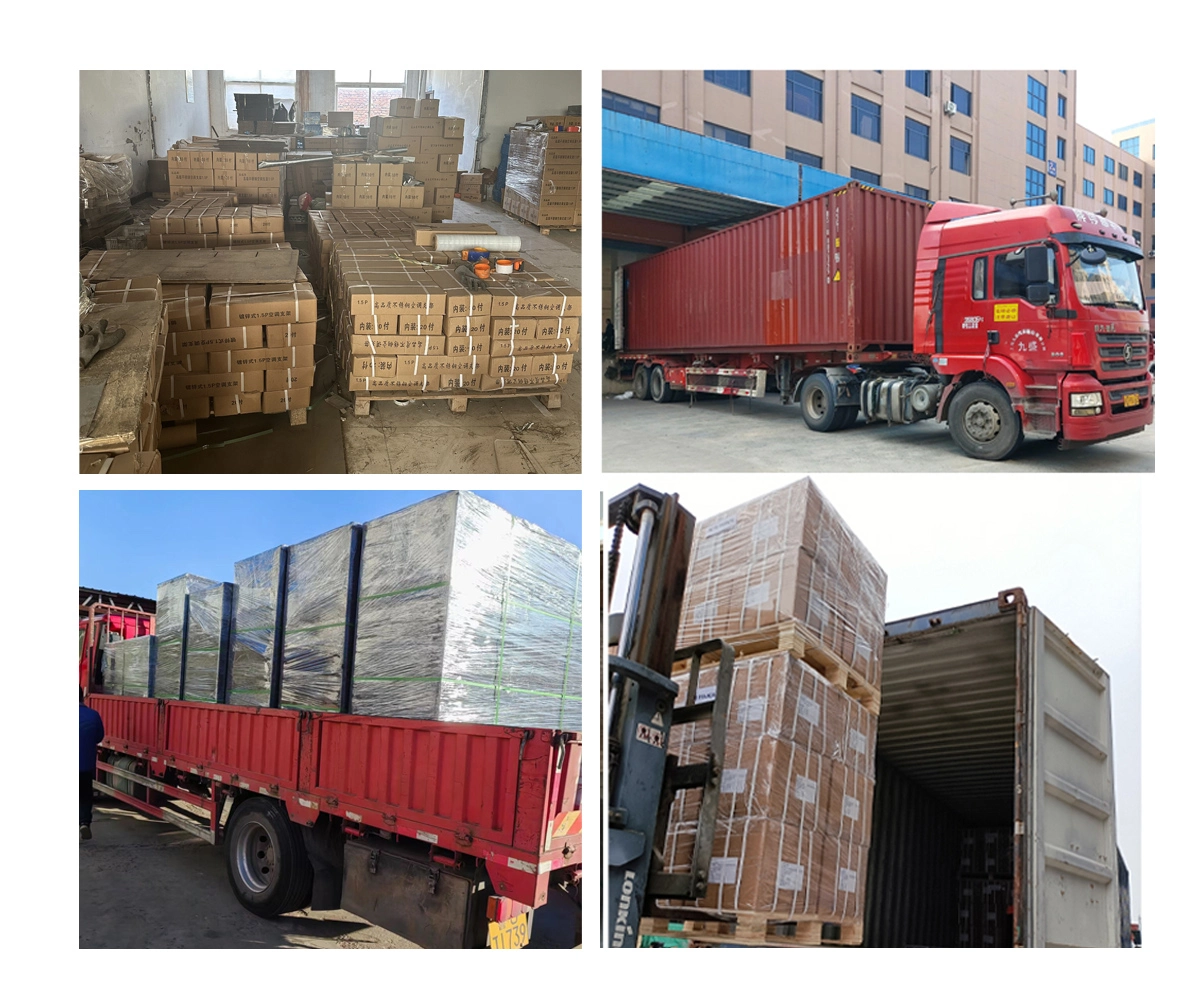

5. Export Packaging: Corrosion-resistant packaging with desiccant for ocean freight, damage-free delivery

Our Qingdao location near major ports cuts your shipping costs. We offer EXW, FOB, and DDP terms depending on your logistics preferences.

Partner With a Factory That Understands Solar Installation

You're not just buying hardware. You're choosing a manufacturing partner for projects that need to perform for 25+ years.

Our advantages go beyond the components:

· Factory-direct pricing eliminates distributor markups (20-30% savings)

· Engineering support helps solve installation challenges before they delay projects

· IP protection through NDAs and secure data rooms for your custom designs

· Scalable production from 100-piece residential jobs to 10,000+ utility-scale orders

We've supported solar installers, EPC contractors, and racking system manufacturers across 20+ countries. Your specific roof challenges aren't unique—but our solutions are engineered precisely for them.

Contact Us

Stop compromising with generic hardware. Get Hooks for Roof Top Mounting Hook components engineered for your exact application.

Contact our team at kshdhardware@qdkshd.com for DFM analysis and fast quotation.
