Heavy Duty Locking Hitch Pin – Premium Security for Your Towing Needs

When you're hauling expensive goods or valuable cargo, you need to be sure that your link is strong. Our Heavy Duty Locking Hitch Pin from Qingdao RuiRui Machinofacture is made with enterprise-level standards and 17+ years of experience making precise products. This security bolt is made from hardened steel and has a shear strength of up to 40,000 lbs. It has a weatherproof O-ring seal, a head that can rotate 360 degrees, and it passes the 500+ hour ASTM B117 salt spray tests. Because our ISO 9001:2015-certified facility has 20+ CNC machines and machining limits of ±0.005mm, each product goes through strict quality control to keep your investment safe from theft and accidental decoupling.

product-1-1

What Does a Good Locking Hitch Pin Look Like?

There are different kinds of hitch pins. You should know the difference between basic hardware and protection that is good enough for professionals.

If you want to keep your trailer safe from theft and dangerous disconnections, you need a good locking hitch pin. In addition to locking your trailer ball mount or hitch-mounted accessory in place, this special fastener also has a locking system built right in.

The Real Problem It Solves

Professional haulers have three big problems with standard clip-style pins:

Theft risk: When you stop for petrol or overnight parking, your expensive caravan or equipment is not being watched.

Vibration failure—High-frequency road motions slowly loosen standard clips, especially on Class IV and V tow systems that are pulling more than 10,000 pounds.

Hitch rattle: The steady movement of metal against metal wears down the structure and eventually causes the receiver tube to get longer.

These problems are solved by our product, which is made with precision engineering and hardened materials that can handle huge shear forces during pulling..

product-1-1

Technical Specifications

Parameter	Specification	Industry Benefit
Pin Diameter	5/8 inch (standard)	Fits Class III/IV/V receivers (10,000-30,000 lbs GTW)
Material Options	Hardened Steel / 304/316 Stainless Steel	Maximum shear strength with corrosion resistance
Shear Strength	Up to 40,000 lbs	Exceeds SAE J684 towing standards
Surface Treatment	Chrome plating / Black powder coating / E-coating	500+ hour salt spray test resistance (ASTM B117)
Lock Mechanism	Double-ball bearing / Pick-resistant tubular cylinder	Maximum security against forced entry
Seal System	Weather-resistant O-ring	Prevents internal lock cylinder corrosion
Tolerance	±0.005 mm	Perfect fit without excessive play or binding
MOQ	1,000 pieces	Ideal for fleet managers and distributors
Production Lead Time	20-40 days	Fast turnaround for bulk orders
Quality Certification	ISO 9001:2015	Guaranteed manufacturing consistency

Why Choose Our Manufacturing Approach?

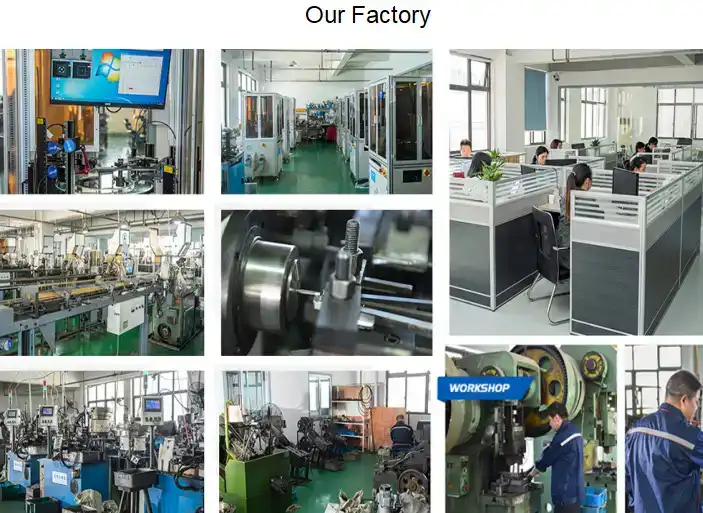

Precision CNC Machining

Your safety depends on tight tolerances. We manufacture each pin using advanced CNC turning and milling processes with:

· 20+ CNC lathesincluding Swiss-type machines for consistent diameter accuracy

· ±0.005mm precisionensuring perfect receiver fit every time

· 24/7 production capacitymeeting urgent fleet replacement needs

Rigorous Quality Control

Every batch undergoes comprehensive inspection protocols:

Double shear strength testing– Random samples are destructively tested to verify they exceed rated capacities.

Salt spray fog testing– Pins endure 72-500+ hours of saline mist exposure to confirm coating integrity.

Dimensional inspection– Go/No-Go gauges verify the 0.625" diameter remains within strict tolerances.

Lock cycle testing– Mechanisms undergo thousands of locking/unlocking cycles to prevent jamming.

Hardness verification– Rockwell C testing confirms proper heat treatment for optimal wear resistance.

Factory-Direct Advantages

Working directly with our manufacturing facility gives you:

· 20-30% cost savingscompared to trading companies

· Faster lead timesthrough optimized production planning

· Custom OEM/ODM solutionswith our dedicated R&D team

· Full traceabilitywith material certifications and inspection reports

product-1-1

Real-World Applications

Commercial Fleet Operations

If you manage construction or landscaping crews, you know the daily punishment your equipment endures. Your teams tow skid steers, excavators, and heavy machinery through mud, dust, and high-vibration jobsites.

Standard clips rattle loose. Expensive pintle hooks and ball mounts disappear overnight from unsecured trailers.

A Heavy Duty Locking Hitch Pin secures your investment while standing up to the harshest working conditions. The integrated lock prevents theft at multi-site operations where supervision is impossible.

Marine and Boat Towing

Boat ramp operations present unique challenges. Your hitch pin faces intermittent submersion in saltwater or fresh water during launching and retrieval.

Standard steel pins rust-weld to the receiver tube. You've probably seen frustrated boaters at the ramp, unable to remove their corroded pins without an angle grinder.

Our stainless steel option specifically addresses this scenario. The 316-grade material resists corrosion indefinitely while maintaining full shear strength for safe highway towing.

Off-Road Recovery and Overlanding

Enthusiasts and professionals conducting vehicle recovery operations generate extreme shock loads—sudden, violent forces applied during winching and extraction.

Your recovery point hitch must handle these impacts without shearing. The locking feature ensures expensive recovery gear stays attached on remote trails where theft would leave you stranded.

Understanding Size Selection

1/2-Inch vs. 5/8-Inch: Which Do You Need?

This common query has a simple hitch class answer:

1/2-inch pins fit Class I and II hitches for bike racks, cargo carriers, and compact utility trailers up to 3,500 lbs.

The industry standard for Class III, IV, and V hitches towing boats, campers, and heavy equipment from 6,000 to 30,000+ lbs is 5/8-inch pins.

Using a 1/2-inch pin in a 5/8-inch receiver hole is risky. Rattling lengthens receiver holes, allowing the mount to separate under stress.

product-1-1

Maintenance Tips for Long Life

Protecting Your Investment in Harsh Conditions

If you operate in regions with heavy road salt or coastal environments, preventive maintenance extends lock life significantly:

Use dry lubricants– Inject graphite powder or Teflon-based spray into the keyway monthly. Avoid wet oils that attract dirt and salt.

Check the weatherproof cap– Ensure the rubber seal stays fully seated after each use to block brine and moisture.

Inspect for rust– Early surface oxidation can be removed with a wire brush and treated with protective coating before it weakens the pin.

Anti-Rattle Technology

Standard locking pins prevent theft and separation but don't eliminate movement noise. If hitch rattle concerns you, look for anti-rattle designs featuring:

· Internal threaded mechanisms that clamp the accessory tight against the receiver wall

· Spring-loaded nuts inside hollow shanks that eliminate play

· Adjustable tension bolts for custom fit

FAQ

Can I get replacement keys if mine are lost?

Professional-grade manufacturers include a key code stamped on original keys. If you register your product, replacement keys can be ordered using this code.

Without the code, heavy-duty locks feature drill-resistant cylinders. Removal typically requires professional locksmith services with angle grinders or torch cutting equipment.

Does stainless steel compromise strength?

The steel grade matters more than the type. Hardened carbon steel generally offers higher ultimate tensile strength than standard 304 stainless.

However, for marine applications, high-strength stainless alloys specifically treated for shear resistance are preferred. They maintain structural integrity indefinitely by resisting rust, while corroded carbon steel loses diameter and strength over time.

How do I know if my pin meets towing standards?

Look for SAE J684 compliance and documented shear strength ratings. Quality manufacturers provide material certifications and destructive test results from random production samples.

Our pins undergo double shear strength testing to verify they meet or exceed rated capacities before shipment.

Will it work with my existing receiver?

The 5/8-inch diameter is the North American standard for Class III/IV/V receivers. Our ±0.005mm machining tolerance ensures proper fit without excessive play or binding.

For specialized applications or international standards, we offer custom OEM solutions through our engineering team.

Custom Manufacturing Capabilities

Beyond Standard Products

Our facility specializes in OEM and ODM partnerships for clients needing customized solutions:

· Material variations– Exotic alloys for extreme environments

· Special coatings– Zinc-nickel, ceramic, or proprietary finishes

· Unique dimensions– Metric sizes or extended lengths

· Branded packaging– Private label for distributors

With 20+ years serving automotive, industrial, and marine sectors, we provide design-for-manufacturability consultation to optimize your specifications for cost and performance.

Quality You Can Trust

ISO 9001:2015 Certified Production

Our quality management system ensures consistency across every production run:

· 100% first article inspectionbefore batch production begins

· Batch sampling per AQL standardsthroughout manufacturing

· Full dimensional reportswith CMM verification

· Material certificationsincluded with every shipment

One-Stop Manufacturing Solution

We control the entire process from raw material procurement through finished product testing:

· In-house heat treatment for precise hardness control

· Multiple surface finishing options under one roof

· Export-ready packaging with EXW/FOB/DDP terms

· Worldwide shipping coordination

Get Your Custom Quote Today

Need reliable towing security for your fleet or distribution business with Heavy Duty Locking Hitch Pin? Our engineering team is ready to discuss your specific requirements.
