L-Shaped Metal Bracket Fasteners - Professional Structural Hardware Solutions

L-shaped metal bracket fasteners from Qingdao RuiRui Machinofacture work really well when your projects need solid corner reinforcement. We've been making things for more than 17 years, and these 90-degree angle brackets are made with high-quality steel or stainless steel and precise CNC cutting. Available in various sizes, our screws are created to precise specifications (±0.005mm) and are strong due to high-tech bending and punching. IS9001:2015-approved batches undergo rigorous quality checks. Thus, your structural links can withstand large loads. Order 1,000 pieces and receive them in 20–45 days.

What Are L-Shaped Metal Bracket Fasteners?

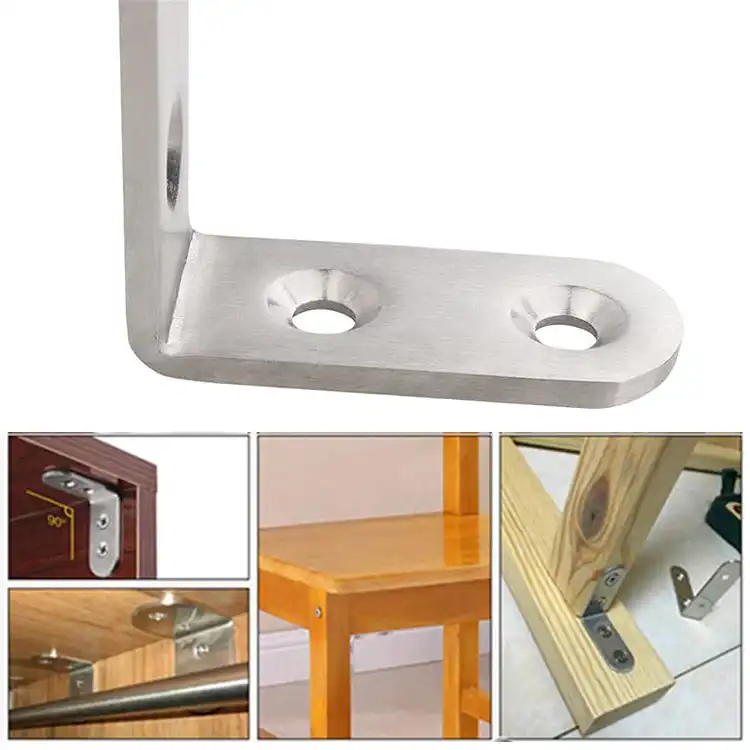

These building parts are engineered corner braces that are made to connect two areas at a perfect right angle.

They solve important problems in manufacturing and building.

Important Jobs:

l Keep your joints from getting tired from constant stress

l Ensure that all of your parts are perfectly straight.

l Spread out the mechanical loads over a larger surface area.

l Get rid of problems with structural misalignment

These clamps will keep your furniture, shelves, machines and building frames stable for a long time.

They are very important for moving loads, especially in situations where vibration or temperature changes could damage the link.

Superior Material Engineering & Technical Properties

Our brackets are manufactured from premium-grade materials selected for your specific environment.

Material Options:

· Carbon Steel (Q235B/Q345B): High tensile strength for general industrial use

· Stainless Steel (AISI 304/316): Superior corrosion resistance for coastal or chemical environments

· Hot-Dip Galvanized Steel: Enhanced oxidation protection with coating thickness exceeding 50 microns

Technical Specifications:

Parameter	Specification
Gauge Thickness	2.5mm - 6.0mm (customizable)
Tolerance	±0.005mm precision
Bend Angle	90° (custom angles available)
Surface Treatments	Galvanization, Powder Coating, Zinc Plating
Load Direction	Shear and tensile rated
Standards Compliance	ISO 2768, ASTM A36, ISO 9001:2015

Performance Features:

Advanced models include reinforced gussets—pressed ribs at the corner bend that increase bending moment resistance by up to 400%.

This geometric reinforcement allows thinner gauges to support higher loads.

Your projects benefit from reduced material costs without compromising structural integrity.

Customization Capabilities for Your Exact Needs

Every application has unique requirements.

Our one-stop manufacturing service covers the complete production cycle.

Customization Options:

· Size dimensions tailored to your specifications

· Equal or unequal leg lengths

· Multiple hole patterns and slot configurations

· Specialized gusset reinforcements

· Surface finishes matching your environmental conditions

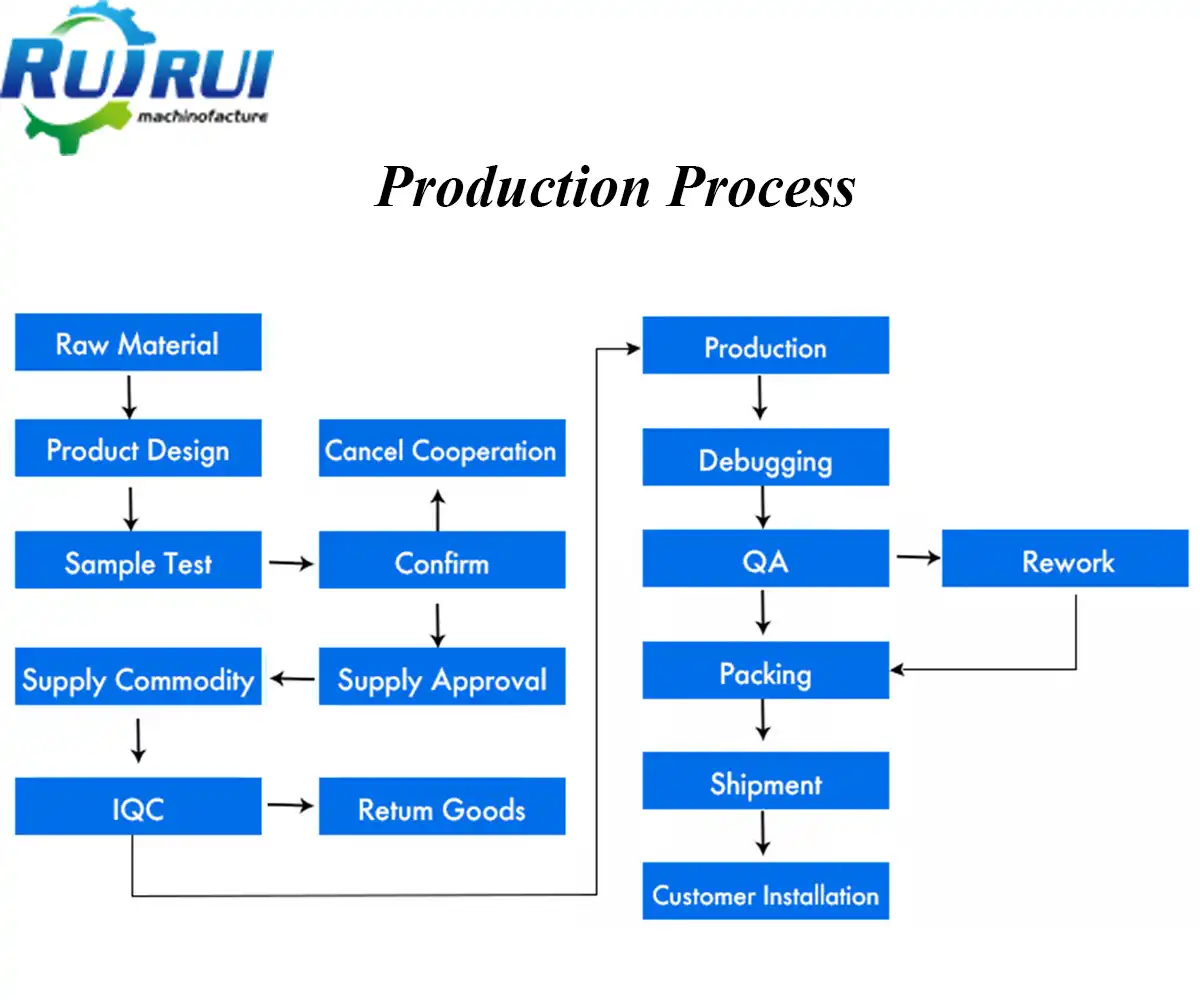

Our Process:

You send your CAD files in STEP, IGES, or X_T format.

We provide free Design for Manufacturability (DFM) analysis within 48 hours.

Our engineering team suggests optimizations to improve strength and reduce costs.

Production begins with high-precision CNC bending and punching operations across our 20+ machines.

Quality Assurance You Can Trust

Quality control is embedded in every production stage.

Inspection Protocol:

· Raw material verification with material certification

· First article inspection (FAI) for new orders

· In-process dimensional checks using CMM equipment

· Batch sampling per AQL standards

· Final inspection before packaging

Documentation Provided:

· Full dimensional reports

· Material test certificates (MTC)

· PPAP documentation for OEM clients

· FAIR reports upon request

Each bracket that reaches you has passed multiple quality checkpoints.

Our ISO 9001:2015 certification validates our commitment to consistent excellence.

Industry Applications

L-shaped metal bracket fasteners serve diverse sectors where structural reliability matters.

Construction & Architecture:

· Heavy-duty shelving systems

· Structural framing connections

· Seismic retrofitting applications

· Cross-Laminated Timber (CLT) assemblies

Industrial Manufacturing:

· Machinery frame reinforcement

· Conveyor system brackets

· Equipment mounting solutions

· Vibration-resistant connections

Automotive & Transportation:

· Trailer component assemblies

· Vehicle frame reinforcements

· Cargo securing systems

Furniture & Fixtures:

· Commercial shelving units

· Workstation frameworks

· Display case construction

Installation Considerations for Optimal Performance

Proper installation ensures your brackets perform to specification.

Critical Factors:

Concrete, wood, and metal substrates have different load ratings. Always check anchor and base material requirements.

Choose grade-appropriate bolts or screws. Insufficient fasteners cause bracket failure regardless of strength.

Use non-conductive EPDM washers to link stainless steel brackets to aluminium framing to prevent galvanic corrosion. Electrochemical processes that weaken connections are prevented.

Load Direction: Determine if forces are shear (parallel to mounting surface) or tensile. Arrange brackets for predicted stress vectors.

FAQ

Q1: How do ordinary corner braces differ from gusseted brackets?

A: Gusseted brackets have pressed corner ribs. Geometric reinforcing greatly increases rigidity and load-bearing capability. It prevents high loads from opening the bracket. This is essential for heavy shelves and structural framework.

Q2: How do I choose coastal materials?

Standard zinc-plated steel can't withstand seaside conditions. You must specify AISI 316 Stainless Steel or HDG steel with coating thickness over 50 microns. These materials resist chloride-induced corrosion.

Q3: Are these fasteners seismic retrofittable?

Only certain seismic-rated variations qualify. These have slotted holes or ductility grades. They allow earthquake-induced structural drift without cracking. Always check local building codes like the IBC.

Q4: What is your minimum order?

A: Minimum order is 1,000 pieces. This barrier lets us offer factory-direct pricing without compromising quality. We offer zero MOQ prototype development with reduced cost.

Q5: What is your bracket load rating?

Substrate type, fastener anchoring method, and load direction affect load ratings. Technical data sheets (TDS) with ASTM D1761 load values are provided. Contact our engineering team for application-specific advice.

Why Choose Qingdao RuiRui Machinofacture

Factory-Direct Advantages:

· Cost Savings: 20-30% lower pricing compared to trading companies

· Speed: 70% of urgent orders shipped on schedule

· Control: Complete production oversight from raw material to finished product

Manufacturing Excellence:

· 20+ CNC machines including 3/4/5-axis capabilities

· 24/7 production capacity with three-shift operation

· One-stop solution covering design, machining, finishing, and packaging

Customer-Focused Service:

· Dedicated R&D team for custom solutions

· Free DFM analysis to optimize your designs

· IP protection through NDAs and secure data management

· Worldwide shipping with flexible EXW/FOB/DDP terms

Proven Track Record:

From Qingdao with direct port access, we've supplied global automotive, aerospace, industrial machinery, and construction clients for nearly two decades.

Our goods are internationally praised for quality and reliability.

Contact Us

Ready to discuss your bracket requirements with L-shaped metal bracket fasteners? Our engineering team is standing by to help.

Email us at:kshdhardware@qdkshd.com for quotes and technical support.
