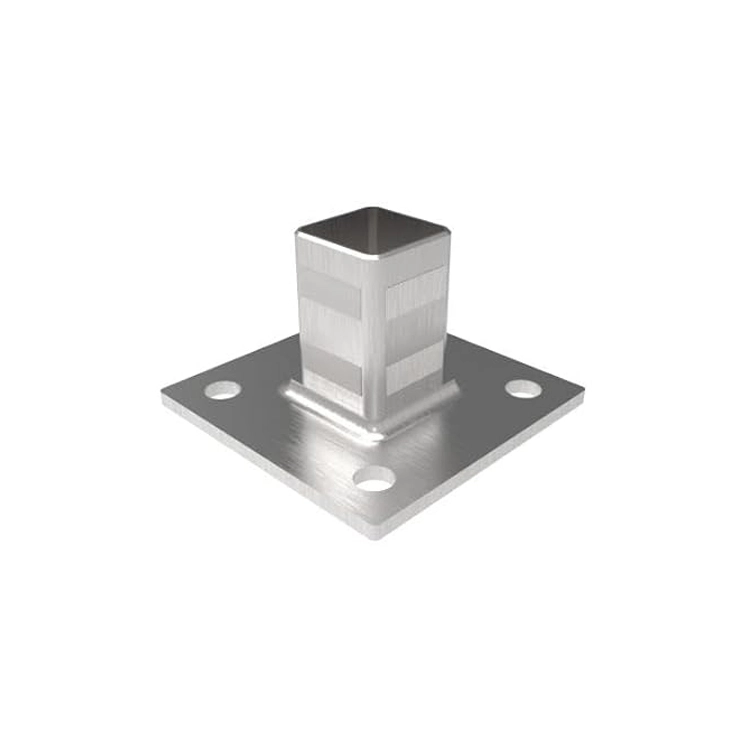

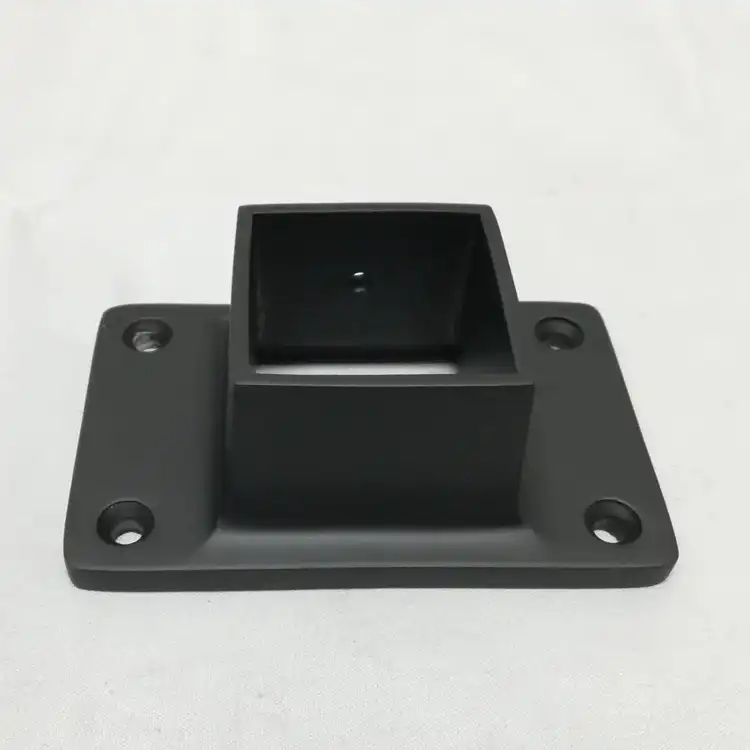

Square Long Neck Floor Flange

Square Long Neck Floor Flange - High-Precision Floor Mounting Solution

Through advanced CNC machining, Qingdao RuiRui Machinofacture Co., LTD provides Square Long Neck Floor Flange options for businesses that need precision within 0.005mm. With more than 20 years of experience making things and ISO 9001:2015 approval, we can do everything in-house, from checking the raw materials to testing the finished goods. Our factory-direct edge saves you 20–30% on costs compared to traders, and our 20+ CNC machines are always running to ensure quality. We work with clients all over the world in the automotive, manufacturing, and architectural industries. For every batch, we make sure that all the dimensions are checked using a CMM and that the materials are fully certified.

What Makes Our Square Long Neck Floor Flange Different?

You need more than just a clip to mount it. You need a structure that is strong and won't break down over time.

Our Square Long Neck Floor Flange is designed to solve important stability problems that come up with modern railing systems. The longer vertical sleeve form, which goes from 50mm to 100mm, offers better side resistance than regular low-profile base plates.

The thing that makes our goods unique is:

Better distribution of load: The square base has a bigger touch area than the round ones. When anchoring into concrete corners or edges, this shape provides better resistance to rotational force.

We can get tight tolerances of ±0.01mm (±0.005mm with Swiss machining) by using modern CNC turning and milling. This solves the usual issue of installing posts that aren't straight because the geometry isn't square.

Anti-Wobble Engineering: The long neck stiffens the post from the inside, making it much less likely to move. This takes care of base fatigue that comes from lateral loads in places with a lot of foot traffic.

Material Integrity: For every batch of products we make, we do Positive Material Identification (PMI) testing. We make sure that the molybdenum percentage of 316-grade stainless steel is at least 2.0% for marine-grade uses.

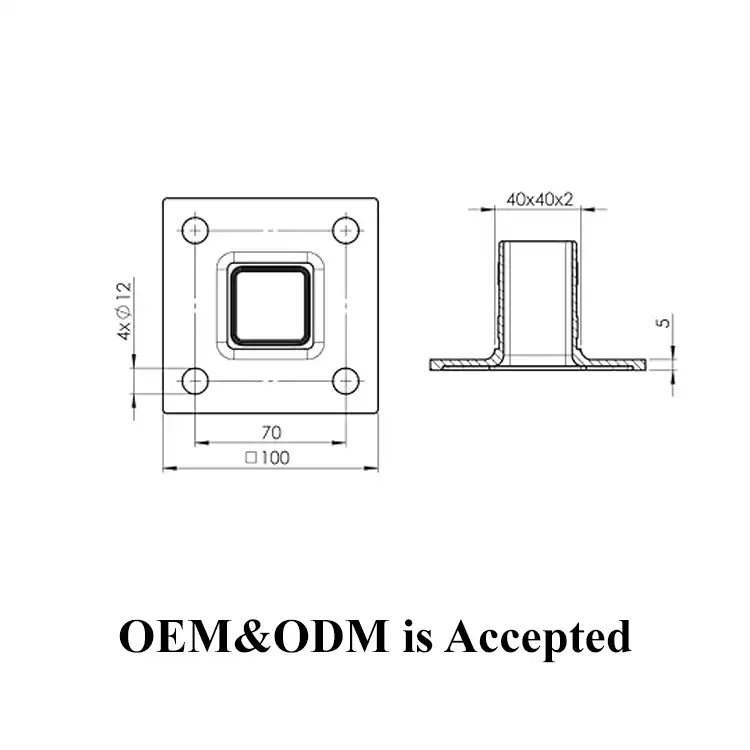

Technical Specifications

Parameter	Specification	Notes
Brand	Ruirui	Factory-direct manufacturer
Base Shape	Square	Enhanced torque resistance
Neck Height	50-100mm (Customizable)	Specified per drawing
Material Options	304/316 Stainless Steel, Carbon Steel	PMI tested for composition
Machining Tolerance	±0.01mm (Standard) / ±0.005mm (Swiss)	CNC precision verified
Surface Finish	Satin, Mirror Polish, Powder Coating	Ra values measured
Color	Silver (Standard) / Customizable	As per client requirements
Load Capacity	Tested to designated kN rating	Pull-out strength assessed
MOQ	1,000 pcs (Production) / No MOQ (Prototype)	Flexible for testing
Lead Time	1-2 weeks (Prototypes) / 4-7 weeks (Mass Production)	70% urgent orders on-time
Certifications	ISO 9001:2015	Full documentation provided
Quality Control	100% Inspection with CMM	Material certs (MTC) included

Why Professional Buyers Choose Our Manufacturing Process

You're not just buying a component. You're investing in process reliability.

Rigorous Quality Control at Every Stage

Material Verification Stage:

· Spectrometer testing confirms chromium and nickel content

· For 316 grade applications, Molybdenum verification ensures ≥2.0% composition

· Material certification (MTC) provided with every order

Precision Machining Stage:

· Digital caliper measurement ensures internal and external diameters meet +/-0.2mm tolerances

· Go/No-Go gauges verify square geometry accuracy

· Even 0.5-degree deviations are rejected to prevent crooked installations

Structural Testing Stage:

· Lateral load-bearing tests verify kilonewton (kN) ratings

· Pull-out strength assessments confirm anchoring reliability

· First Article Inspection (FAI) validates prototype specifications

Surface Quality Inspection:

· Ra value measurements for satin or mirror finishes

· Porosity detection in casting or welding seams

· Salt Spray Testing (ASTM B117): 72+ hours for indoor grades, 300+ hours for marine environments

Our Manufacturing Advantages

Source Factory Advantages: You work directly with the factory. When there are no middlemen, costs are cheaper and communication for design changes happens faster.

CNC Machining: We can make complex shapes that most makers can't because we have 3/4/5-axis milling centers and Swiss-type lathes. For large special projects, our work envelope goes up to 2,000 x 1,000 x 600 mm.

One-Stop Production: Everything is done under one roof, to the same high standards, from getting the raw materials to cutting, bending, CNC turning, surface treatment, and export-ready packing.

Expertise in OEM/ODM: Our specialised research and development (R&D) team helps with design-for-manufacturability (DFM) analysis. We make sure that your plans are optimised for production efficiency while still keeping the structure strong.

Installation Applications and Performance

You need components that perform in real-world conditions, not just laboratory settings.

Ideal Use Cases

Architectural Railing Systems: Securing square hollow section (SHS) posts in commercial buildings, shopping centers, and public spaces where aesthetic integration matters.

Coastal and Marine Environments: When specified in Grade 316 stainless steel with mirror-polished finish, our flanges provide maximum resistance to chloride-induced pitting corrosion.

Industrial Safety Barriers: High-torque applications requiring stable connections that withstand continuous vibration and lateral forces.

Modular Balustrade Systems: Projects requiring precise perpendicularity on uneven substrates, where the long neck compensates for floor irregularities using stainless steel shims or leveling grout.

Installation Advantages

The square base design offers superior hole patterns for anchoring. When mounting into concrete corners or edges, you achieve better load distribution compared to round flanges.

The extended neck height provides sufficient surface area for TIG welding posts directly to the sleeve. This creates a moment-resisting connection that meets safety codes for structural railings.

For floor leveling challenges, the long neck maintains vertical alignment even when the base requires slight adjustment with shims. This flexibility reduces installation time and material waste.

FAQ

Q: Why should I floor mount with a square flange instead of a round one?

A: The square base increases contact area and hole efficiency. When anchoring into concrete corners or building edges where round flanges lack material connection, this design resists rotational torque better.

Q: What neck height do I need for standard railing posts?

A: We recommend 50mm to 75mm neck height for 42-inch railing posts for structural safety. This provides enough surface area to secure the post against lateral forces while complying with code.

Q: Can these flanges endure coastal conditions?

A: Yes. Flanges in Grade 316 stainless steel with our mirror-polished finish withstand chloride-induced pitting corrosion. Our salt spray testing shows no red rust after 300+ hours of neutral salt spray.

Q: How do you level floors during installation?

A: Use stainless steel shims or levelling grout under the square base. The long neck keeps the post vertical even when the base needs modest adjustment for uneven foundations.

Q: Which welding process attaches posts best?

A: TIG welding is best for neck-post connecting. This approach produces clean, strong welds without reducing stainless steel corrosion resistance.

Q: What's your minimum order quantity?

A: Our production MOQ is 1,000 units. We offer no MOQ for prototype creation, so you may evaluate fitment and performance before ordering in production.

Q: Do you produce prototypes quickly?

A: In 1-2 weeks, we deliver prototypes with full-dimensional inspection results. Mass production takes 4-7 weeks, depending on order complexity and quantity.

Q: Do you certify materials?

A: Yes. OEM clients receive MTC, full dimensional reports, and PPAP documentation for every order. We provide FAIR reports upon request.

Global Partnership Benefits

Working with Qingdao RuiRui means more than just purchasing components. You gain a manufacturing partner committed to your project success.

Cost Efficiency: Factory-direct pricing delivers 20-30% savings compared to trading companies. Our proximity to Qingdao Port reduces logistics costs for international shipping.

Quality Assurance: ISO 9001:2015 certified facility with 100% inspection protocols using CMM, optical comparators, and roughness testers. We catch defects before shipping, not after installation.

Engineering Support: Our team assists with design optimization, material selection, and manufacturing feasibility analysis. Upload your CAD files (STEP, IGES, X_T) for free DFM consultation.

IP Protection: We sign NDAs and maintain secure data rooms for your proprietary designs. Your intellectual property remains confidential throughout the manufacturing process.

Flexible Terms: We accommodate EXW, FOB, and DDP shipping arrangements. Our 24/7 production capacity with 3-shift operation ensures 70% of urgent orders ship on schedule.

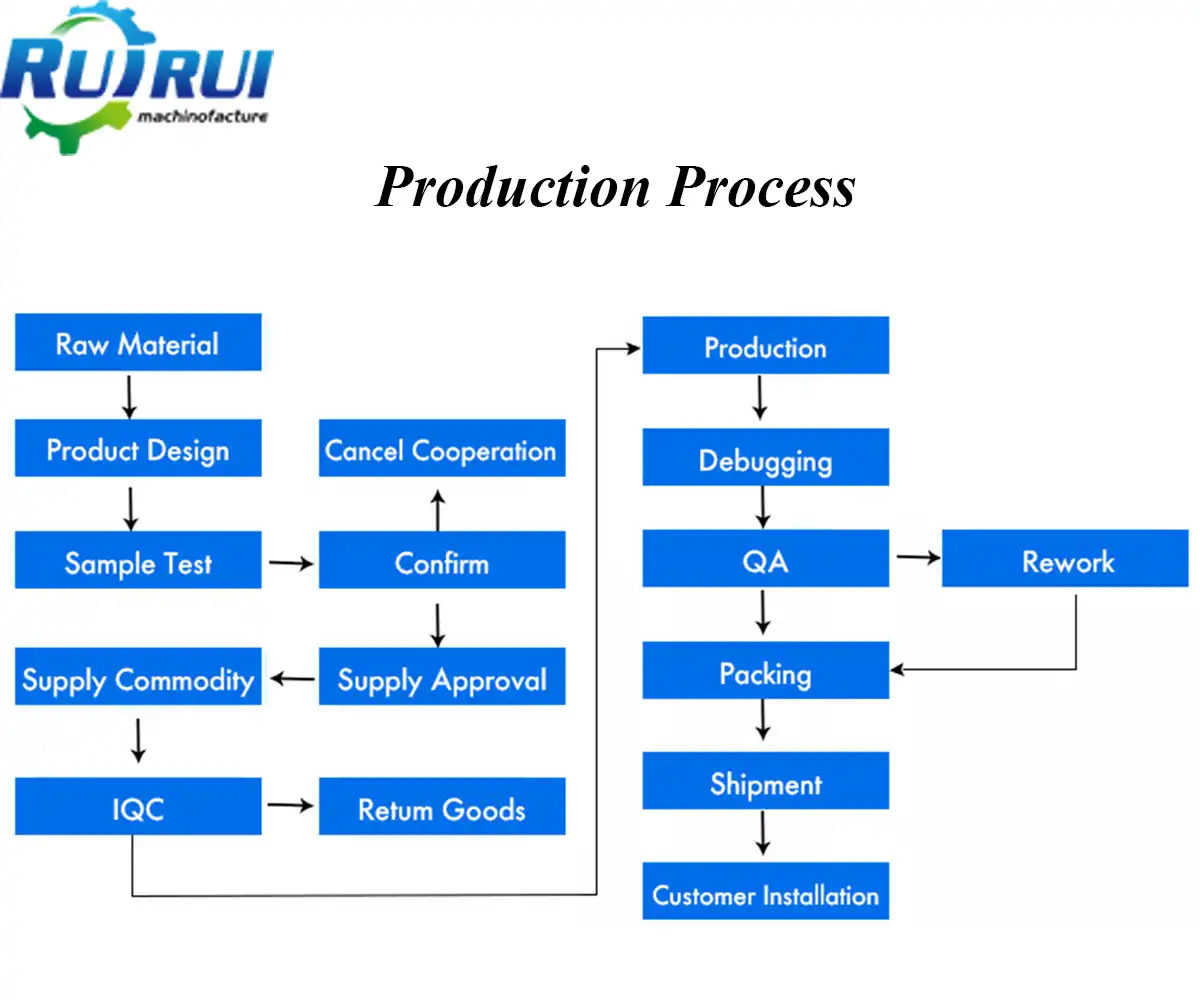

How to Get Started

Getting your custom flanges manufactured is straightforward:

Step 1 - Share Your Requirements: Send your drawings or specifications to our engineering team. Include material preferences, finish requirements, and quantity estimates.

Step 2 - Receive Quote: We provide detailed pricing and lead time within 48 hours. Our quotes include machining, finishing, inspection, and packaging costs with no hidden fees.

Step 3 - Prototype Approval: We manufacture first article samples for your dimensional verification. Review, test, and approve before mass production begins.

Step 4 - Production & Updates: Once approved, full production starts with real-time progress updates. Our quality team conducts in-process inspections at critical stages.

Step 5 - Delivery: We coordinate worldwide shipping with full tracking. Products arrive with complete documentation including material certs, inspection reports, and compliance declarations.

Contact Us

Ready to discuss your Square Long Neck Floor Flange requirements? Email us at kshdhardware@qdkshd.com for a quote within 48 hours.
