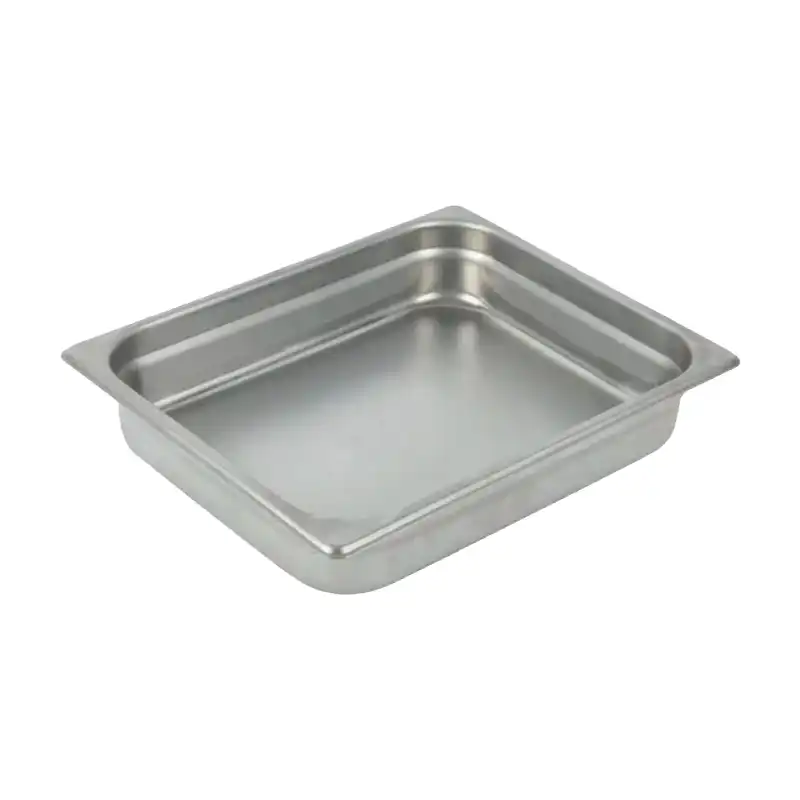

Stamped Stainless Steel Pan

Stamped Stainless Steel Pan – Precision-Formed Cookware Solutions

Qingdao RuiRui Machinery Co., Ltd. uses high-pressure cold-forming technology to make our Stamped Stainless Steel Pan. With more than 20 CNC tools and more than 17 years of experience in OEM/ODM, we can make precision pans with walls that are between 0.6mm and 1.2mm thick. Work-hardening methods give each pan a tensile strength of more than 500 MPa. Our ISO 9001:2015-certified facility guarantees measurements to be within ±0.01mm, which is great for commercial kitchens and food processing businesses. If you buy from the factory instead of a trader, you can save 20 to 30 percent, and big orders take 20 to 40 days to arrive.

What Makes Our Stainless Steel Cookware Different?

You need cookware that performs under pressure. Our pans are formed from single-piece austenitic stainless steel sheets through deep drawing. This eliminates weak joints and seams.

The cold-forming process does something special. It strengthens the metal naturally. Your pans become tougher without adding weight.

Unlike cast cookware, stamped designs offer better weight distribution. Chefs appreciate this during long shifts. The ergonomic balance reduces wrist fatigue in high-volume kitchens.

Manufacturing Process You Can Trust

We control every step at our Qingdao facility. Raw material inspection happens first. Our quality team verifies chromium content (18-20%) and nickel levels (8-10.5%) match ASTM A240 standards.

Next comes the stamping stage. Hydraulic presses shape flat sheets into finished forms. This single-operation method maintains material integrity better than multi-stage processes.

Post-forming treatments matter too. Stress-relief annealing prevents warping. Electropolishing creates smooth surfaces with roughness values below 0.5µm. This microscopic smoothness stops bacteria from hiding in surface imperfections.

Technical Specifications

Parameter	Standard Range	Premium Range
Material Grade	AISI 304 (18/10)	AISI 316 (Marine Grade)
Wall Thickness	0.6mm - 0.8mm	1.0mm - 1.2mm
Bottom Thickness	0.8mm	Up to 3.0mm (Tri-ply)
Yield Strength	≥500 MPa	≥550 MPa
Surface Roughness	Ra <0.5µm	Ra <0.3µm
Thermal Shock Resistance	200°C to 20°C	250°C to 15°C
Induction Compatibility	Optional (430 Grade)	Standard (Encapsulated Base)
Handle Attachment	Riveted (4x Load Capacity)	Projection Welded
Lead Time	30-40 days	20-30 days
Minimum Order Quantity	500 units	Negotiable

Why Choose Factory-Direct Manufacturing?

Cost Advantages You'll Notice

Middlemen add 20-30% to your costs. We eliminate that markup. Our source factory model means you pay manufacturing prices, not retail margins.

Volume buyers benefit most. Orders over 1,000 units qualify for tier pricing. Your procurement budget stretches further.

Quality Control That's Measurable

Every batch undergoes first article inspection. Our CMM machines verify dimensions match your specifications. Optical comparators check surface finish quality.

We provide full documentation too. Material test certificates confirm steel composition. PPAP reports give you traceability for compliance audits.

Dimensional reports come standard. You'll know exactly what you're receiving before shipment.

Customization Without Complications

Your brand deserves unique products. Our R&D team assists with design modifications. Need custom handle designs? We'll engineer solutions.

Laser engraving adds logos permanently. Electroplating creates color variations. We handle everything in-house.

The Stamped Stainless Steel Pan line adapts to your market needs. Whether you're targeting restaurant suppliers or retail chains, we'll match your specifications.

Applications Across Industries

Commercial kitchens need solid tools for cooking for a lot of people at once. Our pans can handle being used every day in hotels, restaurants, and food businesses.

Food processing: Surfaces that don't have pores stop contamination from spreading. The chemically neutral qualities work great with acidic foods like tomato sauces.

For institutional cafeterias, designs that can be stacked up save room. The lightweight design makes it easier for staff to handle large amounts of stuff.

Retail Cookware Brands: Working with an OEM lets you focus on marketing. We take care of the complicated parts of production while you build your business.

How Our Production Process Works

Step 1: Design Consultation

Send your CAD files in STEP, IGES, or X_T format. Our engineering team provides free DFM analysis within 48 hours. We'll identify potential manufacturing improvements before production starts.

Step 2: Prototyping

First samples arrive in 1-2 weeks. You can test performance and fit before committing to large orders. Zero MOQ policy applies to prototype development.

Step 3: Mass Production

Once approved, full production begins. Our 24/7 operation with three-shift scheduling ensures consistent output. Real-time updates keep you informed throughout manufacturing.

Step 4: Quality Verification

Final inspection catches defects before shipping. AQL sampling standards guide our batch testing. Only products meeting strict tolerances leave our facility.

Step 5: Global Delivery

We offer EXW, FOB, and DDP shipping terms. Products arrive export-ready with proper documentation. Our location near Qingdao Port speeds international logistics.

FAQ

Why do some pans warp after a few months of use?

Warping happens when material thickness is insufficient. Pans under 0.8mm or lacking proper bottom concavity engineering will buckle under heat. Our manufacturing includes stress-relief annealing. This process prevents thermal expansion issues.

Can these pans work on induction cooktops?

Yes, but only with magnetic steel construction. Standard 304 stainless isn't magnetic. We use tri-ply materials containing ferritic steel or encapsulate magnetic plates to the bottom. Always verify AISI 430 compatibility when ordering.

What's the difference between stamped and forged pans?

Stamped pans are pressed from uniform-thickness sheets. This makes them lighter and smoother. Forged pans have varying thickness (thicker base, thinner rim). Stamping offers better cost-effectiveness for large production runs while maintaining excellent tensile strength.

How do you prevent rainbow discoloration?

Those rainbow patterns are chromium oxide layers from high heat. They're not defects. High-quality electropolishing during manufacturing minimizes this issue. The process smooths surfaces at microscopic levels, reducing oxidation susceptibility.

Are stamped pan handles weaker than cast versions?

Not when properly attached. We use high-impact rivets or projection welding. Industry-standard torque tests verify attachments support 4x the pan's filled weight. This ensures safety even in demanding commercial environments.

Understanding Material Properties

Choosing the right materials is the first step in making sure you have good cookware. The best mix of properties can be found in austenitic stainless steel.

A inactive oxide layer is made when there is a lot of chromium (18–20%). This screen can't be seen, but it keeps corrosion and rust away. Nickel (8–10.5%) makes things last longer and keeps their shine over time.

How heat is distributed is important for food. Single-layer stainless steel heats up quickly, but multi-ply design makes the heat spread out more evenly. Core layers made of aluminium get rid of hot spots that burn food.

You can easily move pans from the stove to the washbasin if they are resistant to thermal shock. Temperature changes from 200°C to 20°C don't hurt product goods that were made correctly.

Partnership Benefits

Engineering Support

Our 17-year experience helps you avoid common design mistakes. The team reviews your specifications and suggests improvements. This collaborative approach reduces revision cycles.

IP Protection

We sign NDAs before reviewing designs. Your intellectual property stays secure in our data rooms. Confidentiality matters in competitive markets.

Flexible Production Planning

Rush orders get priority scheduling. We've delivered 70% of urgent requests on time. Our production capacity adjusts to your seasonal demands.

Transparent Communication

You'll receive progress updates throughout manufacturing. Questions get answered within one business day. Our English-speaking sales team bridges language gaps.

Contact Us

Ready to Start Your Order with Stamped Stainless Steel Pan? Get your custom quote today. Email your specifications and quantities to kshdhardware@qdkshd.com and receive pricing within 48 hours.
