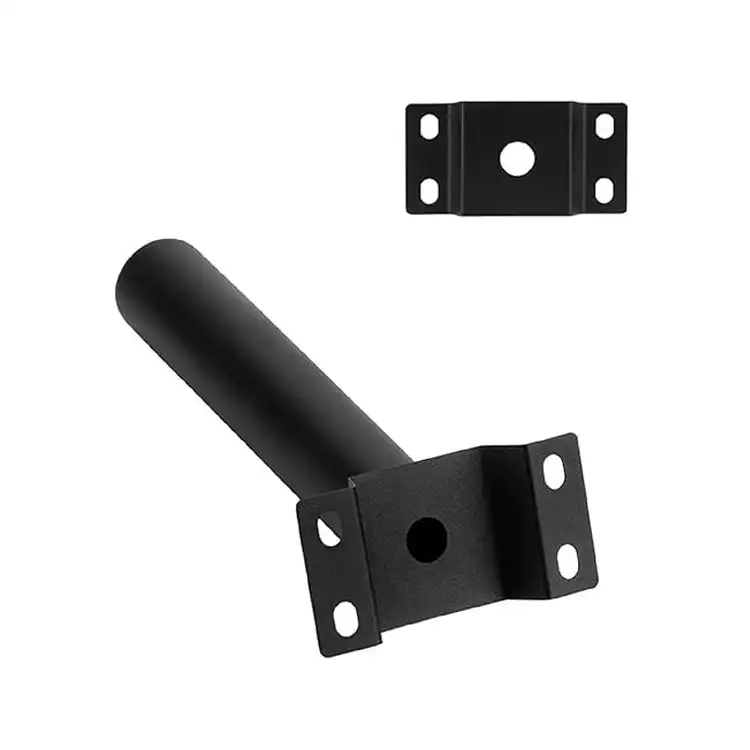

Streetlight Bracket

Professional Streetlight Bracket Solutions for Municipal & Industrial Lighting

When you're planning outdoor lighting infrastructure, you need mounting solutions that won't fail. Qingdao Ruirui's Streetlight Bracket delivers precision-engineered performance with load capacities exceeding 3-4x luminaire weight and wind resistance rated for EPA compliance. Our factory produces brackets with ±0.01mm dimensional accuracy using Q235B/Q345B steel and 6061-T6 aluminum, finished with 85μm+ hot-dip galvanizing (ISO 1461 certified). With 20+ CNC machining centers and 17 years of OEM experience, we deliver custom solutions from 1000pcs MOQ in 20-45 days. Our one-stop service covers design optimization, multi-axis machining, and corrosion-resistant coatings that pass 1000-hour salt spray testing.

What Makes Our Mounting Arms Different

Built for Real-World Conditions

You face harsh environments every day. Coastal salt air eats through cheap hardware. Wind loads crack poorly welded joints. Temperature swings loosen connections.

Our brackets solve these problems through material science and manufacturing precision.

We use high-tensile steel (yield strength 235MPa+) for long-reach arms. Aluminum alloy options reduce weight for decorative installations. Every piece goes through hot-dip galvanizing with coating thickness verified by magnetic gauge.

Engineering That Adapts to Your Infrastructure

Legacy poles don't always match modern LED fixtures. That's why we offer:

· Spigot diameters: 48mm, 60mm, 76mm compatibility

· Adjustable tilt angles: 0-90° range

· Custom projection lengths: 1.5m to 3m+

· Universal pole clamp designs: 89mm to 219mm diameter range

Your existing infrastructure works with our hardware. No expensive pole replacements needed.

Technical Specifications

Parameter	Specification	Standard Compliance
Material Options	Q235B/Q345B Steel, 6061-T6 Aluminum, 304/316L Stainless	ASTM A123, ISO 1461
Machining Tolerance	±0.01mm (±0.005mm Swiss machining)	ISO 9001:2015
Surface Treatment	Hot-Dip Galvanizing (85μm+), Powder Coating	ASTM B117 (1000hr salt spray)
Load Capacity	3-4x luminaire static weight	AASHTO LTS-6, EN 40
Wind Resistance	Optimized EPA calculation per project	Site-specific engineering
Spigot Interface	48mm, 60mm, 76mm	Universal LED fixture compatibility
Tilt Angle	Fixed (5°/10°/15°) or Adjustable (0-90°)	Custom photometric requirements
MOQ	1000 pieces	Prototype services available
Lead Time	20-45 days (Prototypes: 1-2 weeks)	Factory-direct production

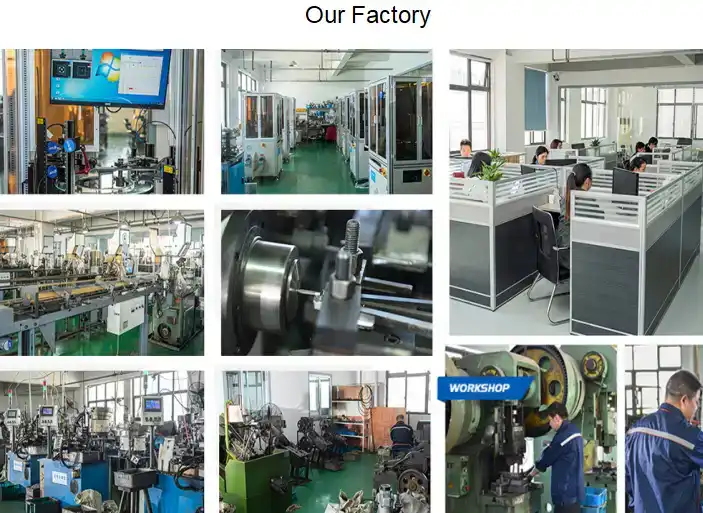

Manufacturing Capabilities You Can Trust

Precision CNC Machining

We control every production step in our ISO 9001:2015 certified facility.

Our 20+ CNC machines handle:

· 3/4/5-axis milling for complex geometries

· Swiss-type turning for long, slender components

· Multi-axis operations completing parts in single setups

This eliminates middlemen. You get 20-30% cost savings compared to trader pricing.

Quality Verification Process

Every Streetlight Bracket undergoes:

1. First Article Inspection- CMM verification of critical dimensions

2. Batch Sampling- AQL standard compliance checks

3. Salt Spray Testing- 1000-hour corrosion resistance validation

4. Load Testing- Structural integrity under simulated wind loads

5. Material Certification- Full MTC documentation provided

We don't ship brackets that don't meet specifications. Your reputation depends on reliable hardware.

Corrosion Protection That Lasts Decades

Surface treatment makes the difference between 5-year and 25-year service life.

Our hot-dip galvanizing process:

· Exceeds 85μm zinc coating thickness

· Covers internal surfaces and threads

· Meets ISO 1461 international standards

For coastal or chemical environments, we add powder coating over galvanizing. This dual-layer system passes 1000-hour salt spray testing per ASTM B117.

Real-World Applications

Coastal Highway Projects

Salt air destroys standard hardware within 3-5 years. Our C5-M high-corrosion brackets use marine-grade materials and enhanced coating systems. Double-arm configurations distribute wind loads across wider spans.

Perfect for expressways in humid, saline environments.

Urban Smart City Retrofits

Modern poles carry more than lights. You're adding 5G small cells, IoT sensors, and surveillance cameras.

Our adjustable-tilt designs accommodate integrated equipment without exceeding EPA ratings. Cable management channels protect wiring from UV degradation and moisture ingress.

Bridge and Overpass Mounting

Constant vehicle vibration causes fatigue cracks in poorly designed brackets. We engineer solutions with:

· Internal harmonic dampers

· Reinforced weldments at stress points

· Thermal expansion compensation

Your lighting stays secure through decades of traffic and temperature cycles.

Why Global Contractors Choose Ruirui

Factory-Direct Advantages

As the source manufacturer, we offer:

· 50% cost savingsvs. Western suppliers

· 15% faster lead timesthrough optimized scheduling

· Zero MOQfor prototype development

· IP protectionwith NDAs and secure data handling

OEM/ODM Engineering Support

Our R&D team provides:

· Free DFM (Design for Manufacturability) analysis

· CAD file optimization (STEP, IGES, X_T formats)

· Material selection guidance for your environment

· Custom finishing options

Complete Production Control

We manage everything:

1. Raw material procurement with certification

2. CNC machining and forming operations

3. Surface treatment and coating application

4. Assembly and packaging for export

5. Worldwide shipping (EXW/FOB/DDP terms)

No subcontractors. No quality surprises.

FAQ

Q: What's the minimum order quantity for custom brackets?

A: Our production MOQ is 1000 units. But we offer prototype services with no MOQ. Test designs before mass production.

Q: How do I choose material?

A: That depends on your environment. Q235B/Q345B steel suits most municipal projects. For weight-sensitive decorations, use 6061-T6 aluminium. Only use 316L stainless steel with harsh chemicals or seawater. Send us your project details and we'll provide the best solution.

Q: Can brackets fit our pole infrastructure?

A: Yes. Give pole diameter, luminaire spigot size, and projection length. Our engineers will create compatible mounting options. Poles from 89mm to 219mm diameter and all LED fixture connectors are supported.

Q: What certifications do you offer?

A: Material test certificates (MTC), dimensional inspection records, and surface treatment verification accompany every shipment. OEM clients receive PPAP and FAIR documentation. The facility is ISO 9001:2015 certified.

Q: How long does production take?

A: Prototypes ship 1-2 weeks. Production orders of 1000+ pieces take 20-45 days, depending on intricacy and finishing. Schedules can handle rush orders.

Q: Do you offer samples before bulk orders?

A: Yes. We recommend testing before production. Sample expenses are refundable for 2000+ production orders. This checks fit, finish, and performance.

Q: What's included in your quality guarantee?

A: 100% dimensional inspection and batch testing are done on all items. Standard compliance (EN 40, AASHTO LTS-6) is guaranteed. Brackets with manufacturing flaws are replaced free of charge.

Q: Can you manage unorthodox designs?

A: Yes. Our 5-axis CNC handles complicated geometry. Submit CAD files for free DFM analysis. Our unique solutions have been used for historical district restorations and industrial facility illumination.

Contact Us

Ready to upgrade your lighting infrastructure with Streetlight Bracket? Our engineering team is standing by to analyze your requirements. Email your project specifications, CAD files, or technical questions to kshdhardware@qdkshd.com for expert consultation and fast quotes.
