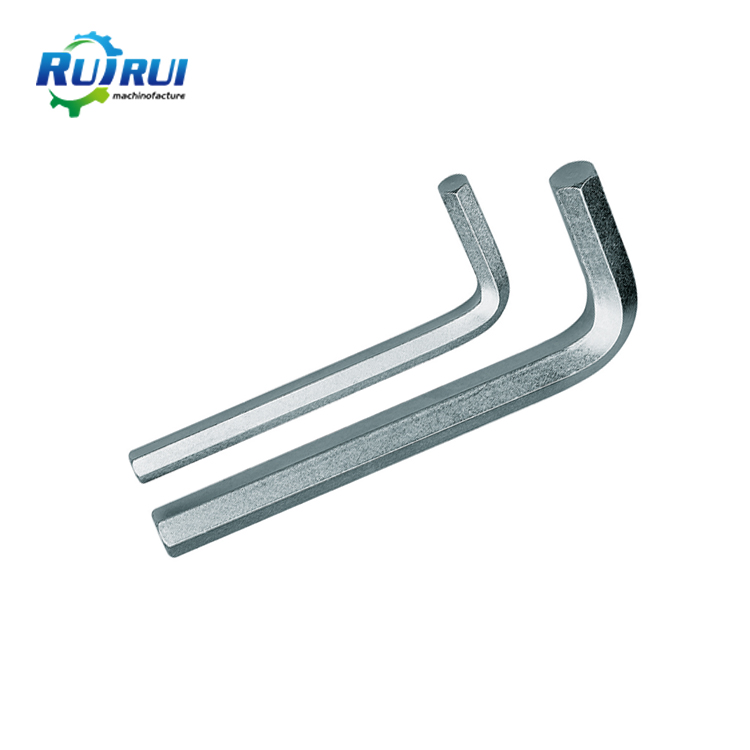

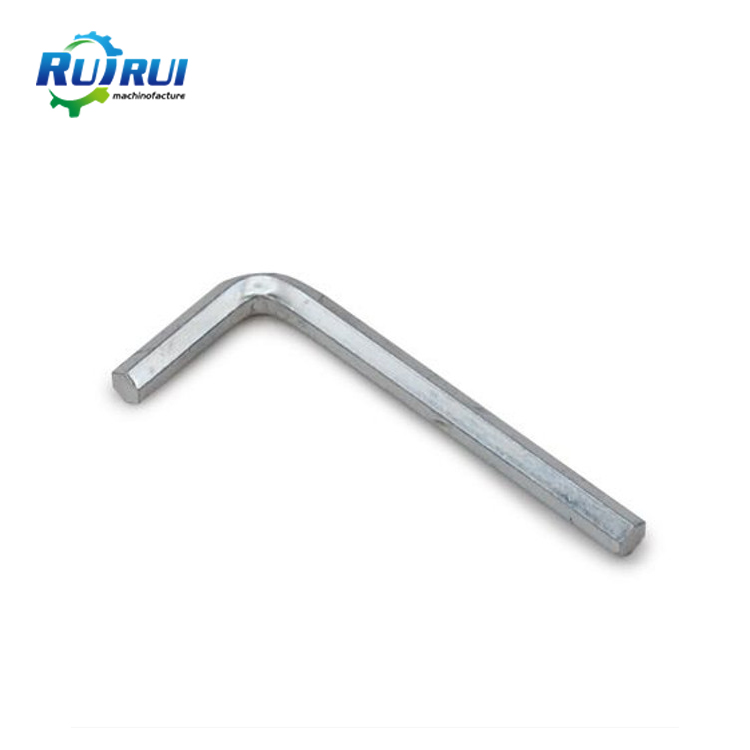

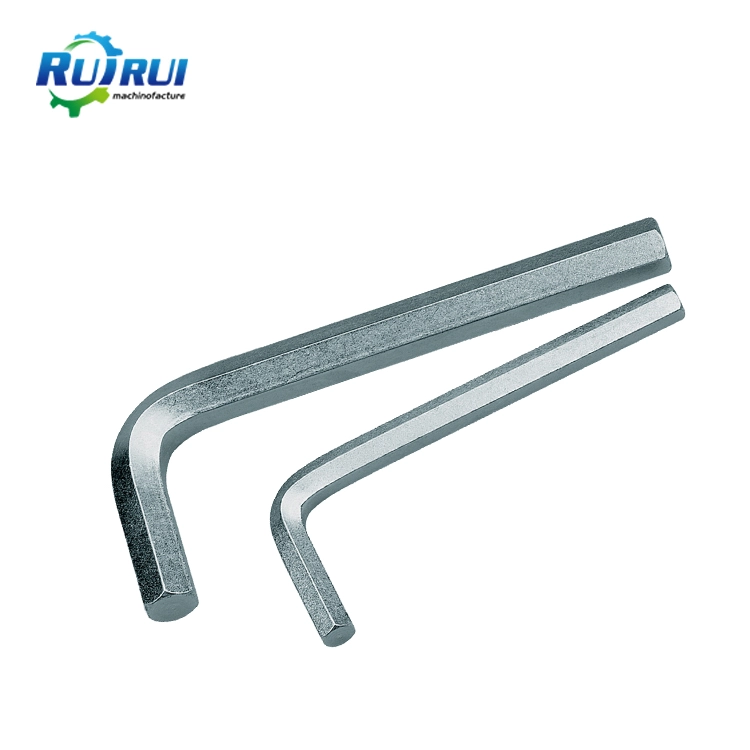

Hexagon Socket Screw Keys with Pilot - Professional Industrial Tools

When your assembly line demands zero tolerance for fastener misalignment, Hexagon Socket Screw Keys with Pilot deliver the precision you need. Manufactured by Qingdao Ruirui Machinery Manufacturing Co., Ltd. with over 17 years of OEM/ODM expertise, our pilot hex keys feature a cylindrical guiding spigot that ensures perfect coaxial alignment before torque application. Built from high-grade steel with tolerances maintained at ±0.005mm through our 20+ CNC machining centers, these tools eliminate cam-out incidents in high-torque applications. Available with galvanized finish (12mm and below) or chrome plating (14mm and above), each batch undergoes ISO 9001:2015 certified quality inspection. With a minimum order of 1000 pieces and full customization support, we provide factory-direct pricing that's 20-30% lower than traders.

What Makes Hexagon Socket Screw Keys with Pilot Different?

The Precision Alignment Advantage

You've probably been frustrated when screw heads come off during important building work. Through clever design, product address this issue.

In contrast to regular Allen keys, these special tools have a cylinder-shaped pilot that extends from the middle of the triangular tip. This pilot fits into the centre hole of your fastener that matches it before the hex sides touch. As a result? Every time, the positioning is perfect.

This means the following for your business:

Angle mistakes are no longer possible because the pilot works as a guiding line and forces the tool to be straight on the fastener surface.

Stops Cam-Out: Stabilizing the tool keeps it fully engaged even when the force is at its highest level.

Protects Investment: No more production stops because of broken screws or torn internal hexes.

When you can't see the clip, the pilot lets you know that it's properly engaged before you turn.

This design solves a major problem that comes up when maintaining and putting together big machinery. Your techs can feel that the parts are properly seated, which cuts down on rework and protects expensive parts.

Technical Specifications

Where These Tools Excel: Critical Applications

Heavy Industrial Assembly & Maintenance

Your turbine maintenance team works in oil-filled housings where fasteners hide in deep counterbores. Standard tools slip and damage expensive castings. Our pilot keys let mechanics feel alignment blindly, ensuring vertical engagement before applying torque. This single feature has saved countless hours of rework in hydraulic press maintenance.

Precision Mold & Die Making

When working with DIN 6912 low-head screws, shallow drive depth makes stability critical. The pilot prevents off-axis pressure that would strip the limited contact area. Your tooling engineers can confidently apply specified torque without second-guessing engagement quality.

Aerospace & Safety-Critical Fastening

In environments where torque verification is mandatory, the pilot ensures your torque wrench applies force directly along the screw axis. This prevents false readings caused by angular deflection, guaranteeing your assemblies meet preload specifications required for flight safety certification.

High-Security Infrastructure

For utility maintenance involving tamper-resistant fasteners, Hexagon Socket Screw Keys with Pilot provide authorized access while preventing standard tool engagement. The pilot feature serves dual purposes: precision alignment and security verification.

Why Choose Qingdao Ruirui for Your Tool Requirements?

Factory-Direct Manufacturing Advantage

We control the entire production chain—from raw material procurement through final inspection. No middlemen means you get:

· Cost Savings: 20-30% lower pricing than trading companies

· Quality Control: Direct oversight of every manufacturing step

· Faster Response: Engineering support without communication layers

· Customization Flexibility: Rapid prototyping and design modifications

Proven Production Capabilities

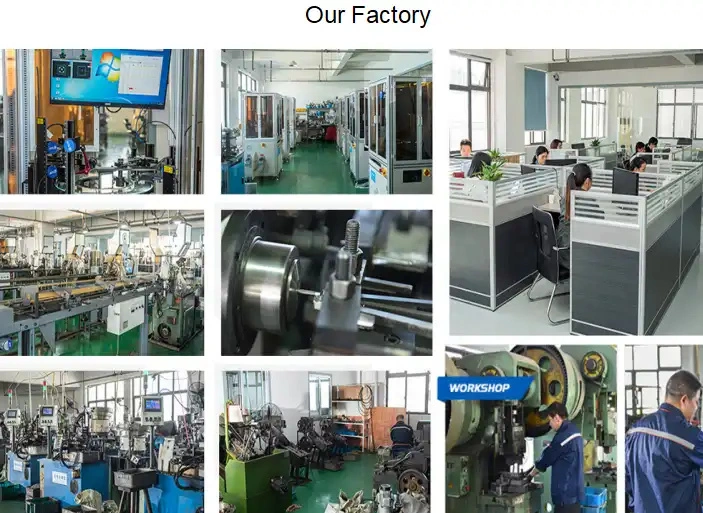

Our facility houses 20+ CNC machines including 3/4/5-axis milling centers and Swiss-type lathes. This equipment enables us to maintain the tight tolerances your precision tools demand. Every batch undergoes:

· First article inspection (FAI)

· CMM dimensional verification

· Material certification documentation

· AQL-standard batch sampling

One-Stop Service Model

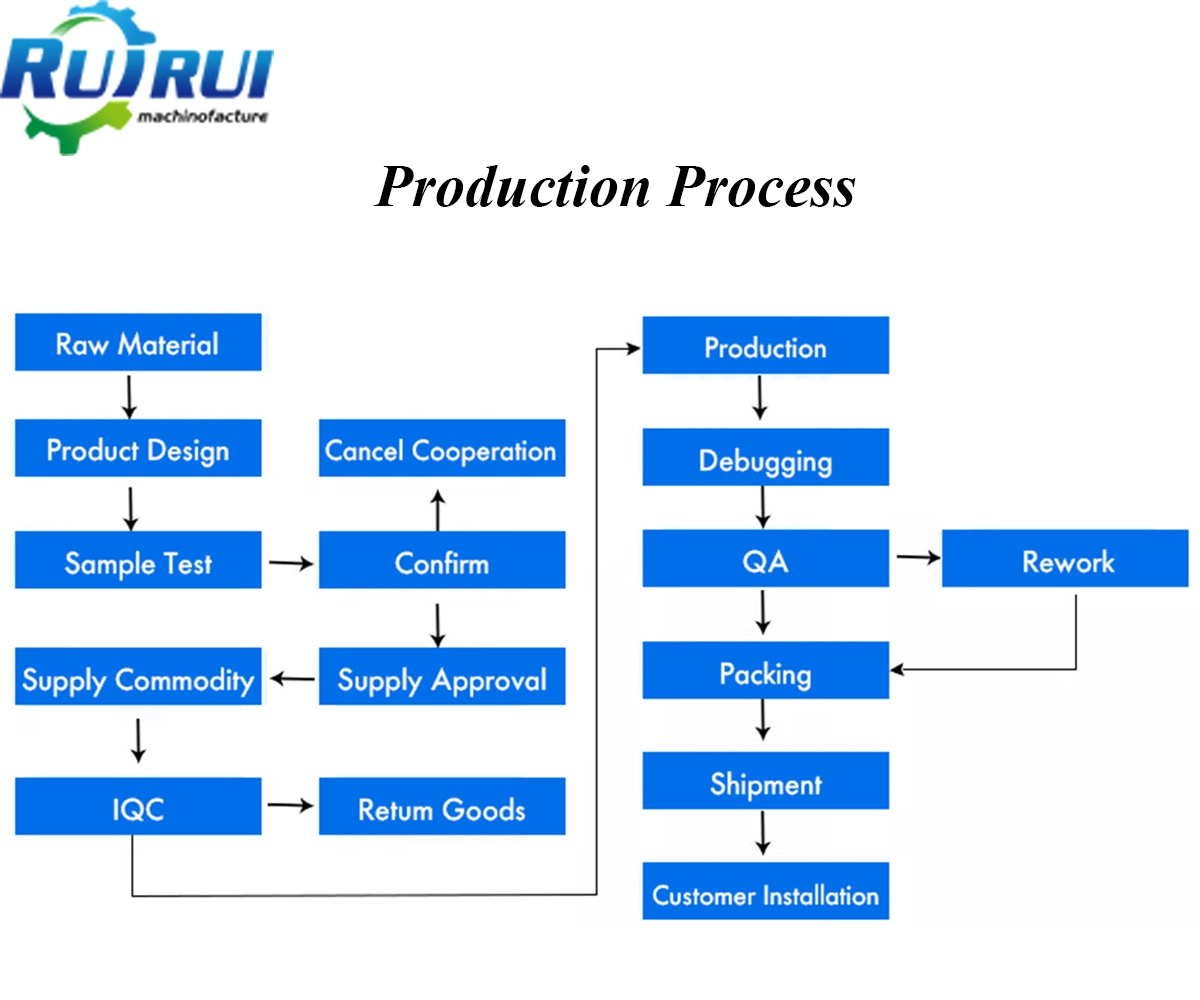

From your initial design concept to export-ready packaging, we handle everything:

1. Free DFM Analysis: Upload your CAD files for design optimization feedback

2. Rapid Quoting: Receive pricing and lead times within 48 hours

3. Prototype Development: Zero MOQ for initial samples

4. Mass Production: Scaled manufacturing with consistent quality

5. Global Logistics: EXW/FOB/DDP terms with worldwide shipping

IP Protection Guarantee

Your custom designs remain confidential through NDAs and secure data management. We understand that your tool specifications represent competitive advantages worth protecting.

Quality That Meets International Standards

Our ISO 9001:2015 certification isn't just paperwork—it reflects our commitment to systematic quality management. Each production run includes:

Incoming Material Inspection: Verified steel composition and hardness before machining

In-Process Controls: Dimensional checks at critical machining stages

Surface Treatment Validation: Coating thickness and adhesion testing

Final Inspection: 100% visual examination plus sampling with optical comparators

Documentation Package: Material test certificates (MTC), PPAP reports, and dimensional reports available upon request

This rigorous approach ensures the product you receive perform consistently across thousands of fastening cycles.

Customization to Match Your Exact Requirements

Standard catalog tools don't always fit specialized applications. We offer comprehensive customization:

· Dimensional Modifications: Pilot length, hex size, overall length adjustments

· Material Selection: Carbon steel, alloy steel, or stainless steel options

· Surface Finishes: Black oxide, manganese phosphate (oil-retention), nickel plating

· Branding: Laser marking with your company logo or part numbers

· Packaging: Individual sleeves, hanging cards, or custom kit configurations

Our engineering team collaborates with you during design, providing DFM recommendations that optimize manufacturability without compromising functionality.

FAQ

Q: Can I use a pilot hex key on standard hex socket screws?

A: No. The pilot pin will prevent entry into flat-bottomed sockets. These tools work exclusively with fasteners featuring center-drilled pilot holes.

Q: What causes pilot pin breakage during operation?

A: Shearing typically results from using undersized keys or forcing misaligned fasteners. Our S2 steel construction with proper hardening resists this failure mode when tools match fastener specifications.

Q: Do you offer both metric and imperial sizing?

A: Absolutely. We manufacture complete size ranges from 2mm to 12mm metric and 5/64" to 1/2" imperial to cover international standards.

Q: How does the pilot affect maximum torque capacity?

A: While the pilot slightly reduces cross-sectional area, the improved stability typically increases effective torque transfer by preventing hex wall stripping—often exceeding standard key performance by 50%.

Q: Which finish works best in hydraulic or oil-rich environments?

A: Manganese phosphate coating is ideal. Its porous structure retains a light oil film that prevents corrosion while maintaining dimensional accuracy in automotive and hydraulic applications.

Q: What's your minimum order for custom specifications?

A: Standard minimum is 1000 pieces for production runs, but we accept zero MOQ for prototype development to validate your design before committing to volume orders.

Contact Us

Ready to eliminate fastener damage and improve your assembly efficiency with Hexagon Socket Screw Keys with Pilot? Our engineering team is here to help you specify the right solution.

Contact us today: kshdhardware@qdkshd.com
