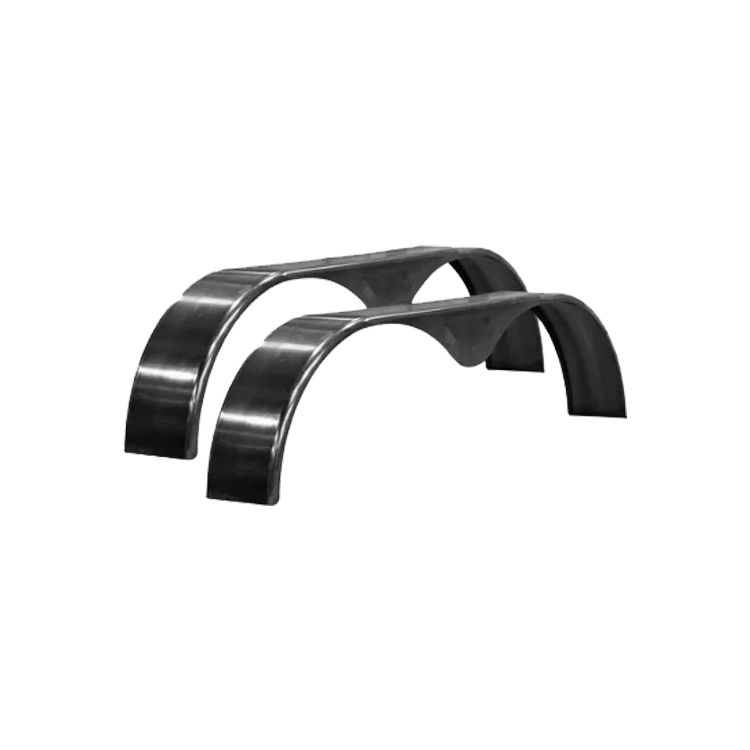

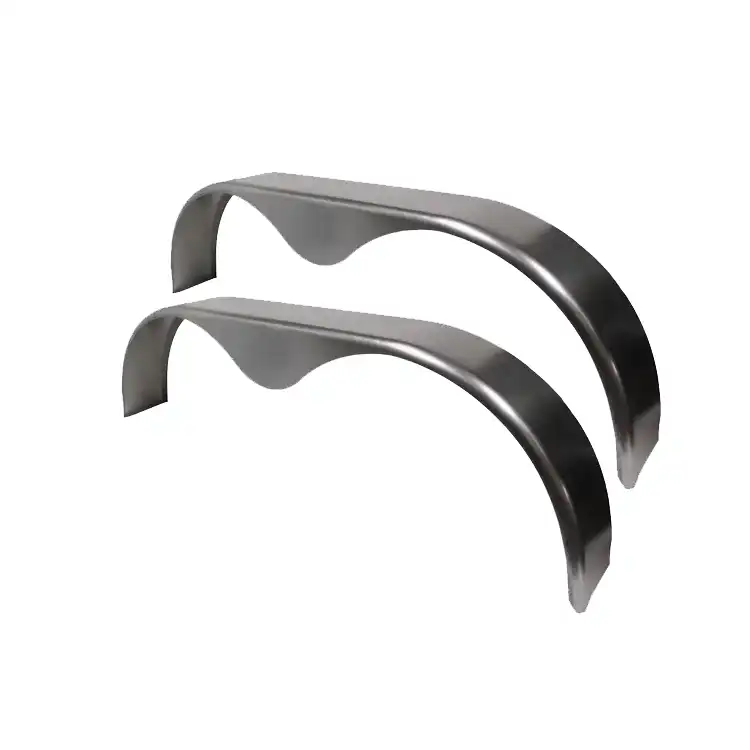

Steel Tandem Fender Teardrop

Steel Tandem Fender Teardrop - Heavy-Duty Trailer Protection Solution

Your fenders need to be the most durable on the market when you're driving tandem-axle trucks in rough conditions. Qingdao RuiRui Machinofacture Co., Ltd.'s Steel Tandem Fender Teardrop is made with industrial-grade steel and 17 years of experience making precise metal products. The unique teardrop shape of our fenders gives them 40% more structural strength than flat designs, which lowers vibration noise and panel drumming. Each unit goes through ultrasonic thickness testing and is guaranteed to be within ±0.5mm of its actual size. It comes in 14-gauge (0.075") and 16-gauge (0.060") thickness choices. Quality control that is ISO 9001:2015 certified and production that takes place in one place, from raw materials to finished assembly, means that factory-direct prices are 20–30% lower than those from wholesalers.

---

What Makes Our Steel Tandem Fender Teardrop Different?

Engineered for Real-World Trailer Applications

Your trailer faces harsh conditions daily. Our fenders are built to handle them.

The teardrop design isn't just about looks. That distinctive V-shaped indentation between wheel arches serves a critical structural purpose. It creates a natural stress distribution point that prevents metal fatigue during long hauls.

You'll notice the difference immediately. The contoured shape eliminates the annoying drumming sound that flat fenders produce. Your operators will appreciate the quieter ride.

Premium Steel Construction You Can Trust

We manufacture these fenders using high-grade steel sheet metal. Every piece starts with carefully selected raw material that meets strict composition standards.

Our CNC machining capabilities ensure precision in every curve. With 20+ specialized machines including 3/4/5-axis milling centers, we maintain consistent quality across large production runs.

The wheel arch radius? Precise to ±0.5mm. That means easy installation every time.

Two Gauge Options for Your Specific Needs

14-Gauge (0.075" thickness):Choose this when your fenders double as step platforms. The extra thickness prevents bending under operator weight. Heavy-duty haulers and industrial trailers benefit most from this option.

16-Gauge (0.060" thickness):Perfect for standard tandem applications where weight savings matter. Still incredibly durable but lighter for fuel efficiency.

Both options undergo the same rigorous quality testing.



---

Technical Specifications

Parameter	Specification
Product Name	Steel Tandem Fender Teardrop
Brand	Ruirui
Material	Premium Grade Steel
Gauge Options	14-gauge (0.075") / 16-gauge (0.060")
Color	Silver (raw steel) or customizable finish
Design Feature	Teardrop contour between wheel arches
Dimensional Tolerance	±0.5mm on wheel arch radius
Surface Treatment	Oil-protective coating (paint-ready)
Mounting Type	Weld-on (bolt-on with backing plates optional)
Quality Certification	ISO 9001:2015
MOQ	1,000 pieces
Lead Time	4-7 weeks (production runs)
Customization	Available (OEM/ODM supported)

Where You'll Use These Fenders

Industrial Car Haulers

Transporting vehicles across thousands of miles demands equipment that won't fail. The steel construction withstands constant bombardment from road debris. High-velocity stones that would crack plastic fenders simply bounce off.

Your transported vehicles stay cleaner too. The extended coverage keeps road spray from coating your cargo.

Agricultural and Dump Trailers

Off-road conditions test every component. Mud accumulation, vibration, and impact from uneven terrain require serious protection.

Our Steel Tandem Fender Teardrop maintains structural integrity where lighter materials fail. The teardrop reinforcement prevents stress cracks at mounting points, even after years of heavy use.

Custom Utility Trailer Manufacturing

If you're building trailers, you need components that integrate seamlessly into your designs. These fenders weld directly to frame brackets, becoming part of your trailer's structural system.

Your customers will appreciate equipment that lasts. Trailers equipped with quality steel fenders maintain their appearance and function through temperature extremes and corrosive road salt exposure.

---

Our Manufacturing Quality Control Process

Quality isn't something we add at the end. It's built into every production step.

Five-Point Inspection System

1. Dimensional Tolerance Verification

Every fender passes through CMM (Coordinate Measuring Machine) inspection. We verify that wheel arch alignment and teardrop center positioning meet the ±0.5mm standard. This ensures your installation team never struggles with fitment issues.

2. Gauge Thickness Testing

Ultrasonic thickness gauges check multiple points across each panel. You get exactly what you ordered—no thin spots that compromise durability.

3. Surface Preparation Assessment

We inspect for scale, deep scratches, or oil residue levels. Your painters will thank you. The surface arrives ready for proper coating adhesion.

4. Weld Seam Integrity Analysis

Multi-piece assemblies undergo visual penetration checks. For critical applications, we perform non-destructive testing (NDT). Those teardrop joints will withstand years of vibration.

5. Corrosion Resistance Validation

Sample batches go through salt spray testing. We compare raw steel performance against galvanized variants to ensure you're getting the protection level your application demands.

Certifications That Matter

Our ISO 9001:2015 certification isn't just a certificate on the wall. It represents our commitment to documented, repeatable processes. Every batch includes full material certification and dimensional reports when you need them.

---

Installation and Surface Treatment Guidance

Preparing Your Fender for Installation

Raw steel fenders ship with a light oil coating. This prevents rust during storage and shipping. Before installation, you'll need to prepare the surface properly.

Step-by-step preparation:

1. Degrease using a quality solvent cleaner

2. Sand or scuff the surface for better adhesion

3. Apply self-etching primer designed for steel

4. Follow with your choice of topcoat or powder coating

This preparation prevents corrosion and ensures your finish lasts as long as the steel underneath.

Mounting Options Explained

Weld-On Installation (Recommended):

Direct welding to frame brackets provides maximum rigidity. This method creates a permanent bond that handles heavy vibration without loosening. Most professional trailer manufacturers choose this approach.

Bolt-On Installation:

You can drill mounting holes if welding isn't practical. Use backing plates behind bolt locations. This distributes stress and prevents fatigue cracking around fastener holes. We recommend 3/8" bolts with lock washers, spaced no more than 12 inches apart.

Why Partner with Qingdao RuiRui Machinofacture?

Factory-Direct Advantages

You're buying from the manufacturer, not a middleman. That means:

· 20-30% cost savingscompared to trader pricing

· Direct communicationwith our engineering team

· Customization supportfor OEM specifications

· Faster response timeson technical questions

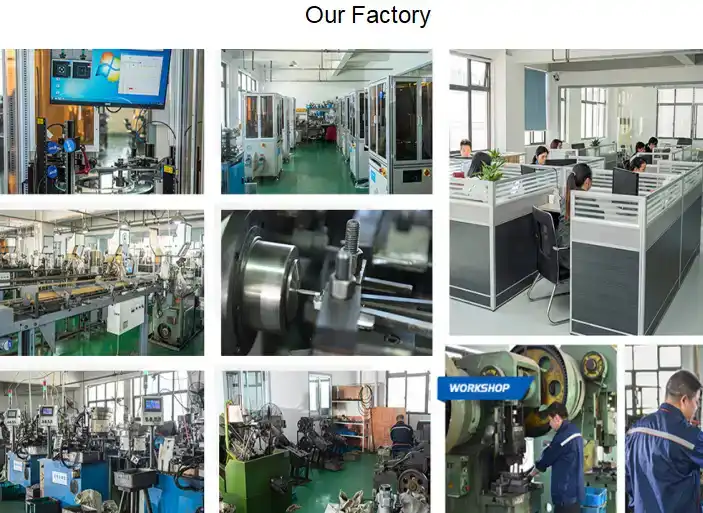

One-Stop Production Capability

We control every step from raw material procurement through finished product testing. Our facility includes:

· Sheet metal cutting and forming equipment

· 20+ CNC machines for precision work

· In-house welding and assembly stations

· Quality testing laboratory with modern inspection equipment

This integration means better quality control and more reliable delivery schedules for your business.

OEM/ODM Expertise

Need modifications for your specific trailer designs? Our R&D team works with you on:

· Custom dimensions and mounting configurations

· Alternative gauge thicknesses

· Special surface treatments or coatings

· Design optimization for manufacturability

We've supplied custom trailer components to manufacturers worldwide for nearly two decades. Your project benefits from that accumulated experience.

FAQ

Q: What distinguishes 14-gauge and 16-gauge product?

A: 14-gauge is 0.075" thick and heavier than 16-gauge (0.060"). With 14-gauge, heavy-duty trailer fenders don't bend under weight. Experts recommend 14-gauge for commercial use and 16-gauge for lighter load.

Q: How should I prepare a raw product for installation?

A: Oil protects raw steel fenders. Remove surface grease using a suitable solvent. Sand or scuff for enhanced adherence. After self-etching primer, apply topcoat or powder coating. Durability and corrosion prevention are achieved with this method.

Q: Can these fenders be bolted or weld-on?

A: Designed for weld-on installations (for greatest rigidity), you can drill and bolt them. Maintain stress distribution with backing plates. The bolt holes are protected from fatigue cracking during operation. Fit fasteners to your trailer's vibration profile.

Q: Is the 'Teardrop' design more useful than flat-top fenders?

A: Yes, absolutely. Beyond aesthetics, the teardrop shape offers structural rigidity. This reduces long, flat metal span drumming and vibration sounds. The design provides a natural attachment point and enhances fender panel stress distribution.

Q: How can I measure my trailer for product fit?

A: Measure from edge of front tire to edge of rear tire. Clear each side 3-4 inches. Be sure your fender is at least 1 inch broader than the tire tread. Spray concerns are avoided and most DOT coverage standards are met.

Contact Us

Ready to Upgrade Your Trailer Protection with Steel Tandem Fender Teardrop? Get factory-direct pricing and expert support from our engineering team. Contact us at kshdhardware@qdkshd.com for customized quotes and technical specifications.

---
