Anchoring System for Portable Winch

Anchoring System for Portable Winch - Professional Industrial Rigging Solutions

When heavy-duty pulling operations demand reliability, you need an Anchoring System for Portable Winch that delivers precision and safety. At Qingdao RuiRui Machinofacture Co., Ltd., we engineer custom anchoring solutions with±0.005mm machining tolerances and load capacities verified through rigorous testing. Our systems feature CNC-machined steel components processed on20+ advanced machines, including multi-axis centers for complex geometries. With ISO 9001:2015 certificationand17+ years of OEM/ODM experience, we provide turnkey solutions from design optimization to export-ready packaging. Each assembly undergoes100% dimensional inspectionusing CMM technology and tensile strength verification to ensure your operations meet safety standards in forestry, rescue, and industrial sectors.

What Makes Our Anchoring Solutions Stand Out?

Built for Extreme Loads

Our anchoring hardware is designed for professionals who can't afford failure. You get components that maintain alignment under high tension.

The system prevents cable binding and mechanical misalignment. Your crew stays safe when pulling heavy loads in challenging terrain.

Factory-Direct Engineering Advantage

Why pay middleman markups? We control the entire production chain.

Our in-house R&D team optimizes your designs for manufacturability. You receive20-30% cost savingscompared to trading companies. We machine every bracket, mount, and hitch plate using precision CNC turning and milling.

Modular Design for Any Environment

Tree anchors. Vehicle hitches. Ground stakes. Rock bolts.

Your operations change location constantly. Our product adapts to natural and artificial anchor points. You can rig in dense forests or open concrete pads without compromise.

The universal interface works with standard 50mm tow balls and D-shackles. Setup time drops dramatically.

Technical Specifications

Component	Material	Finish	Load Capacity	Tolerance

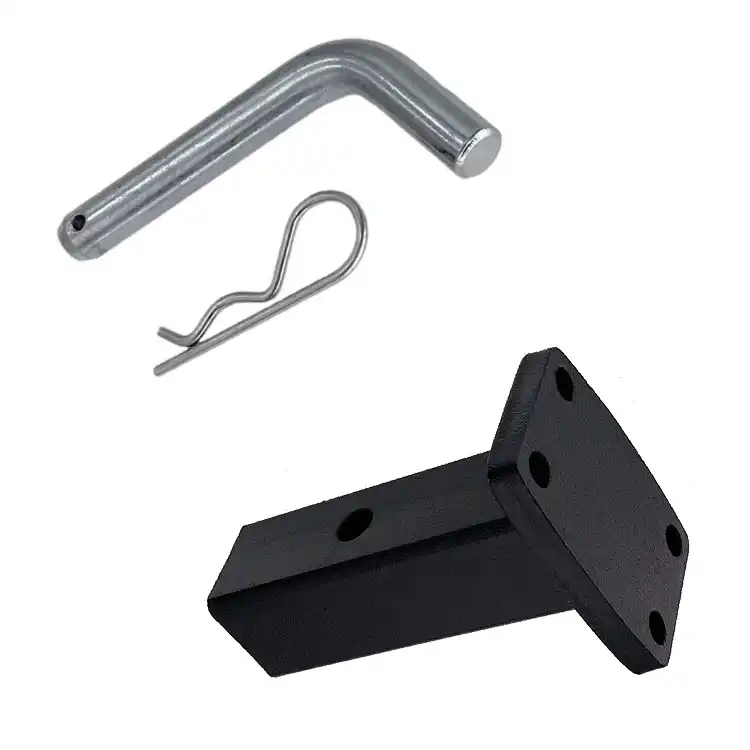

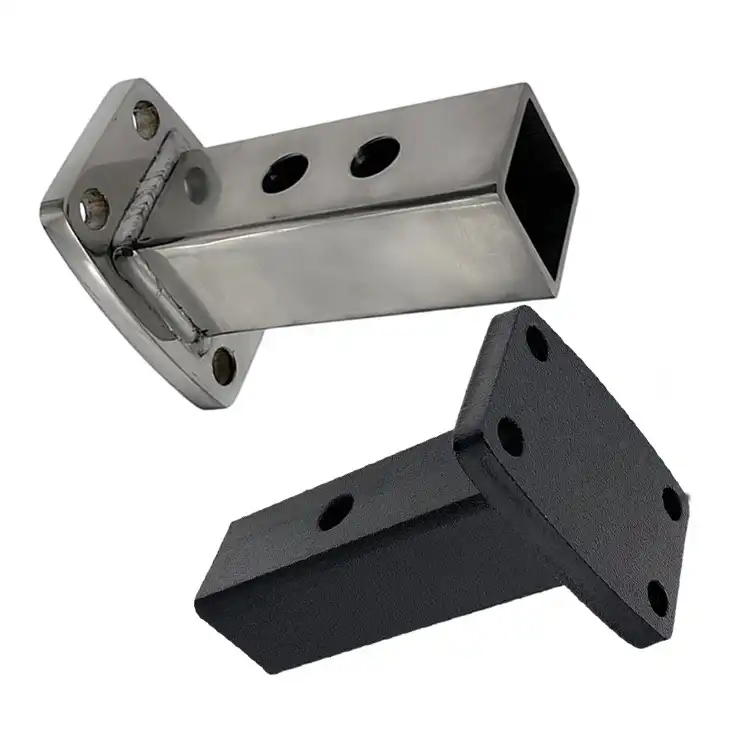

Hitch Plate Anchor	Q345B Steel	Zinc Plating (>10µm)	3-5 Ton MBS	±0.01mm
Tree Sling Assembly	Polyester Webbing	UV-Resistant Coating	2-6 Ton WLL	N/A
Swivel Mount Bracket	Aluminum 6061-T6	Anodized	360° Rotation	±0.005mm
Ground Stake Anchor	Galvanized Steel	Hot-Dip Galvanized	4 Ton (Compacted Soil)	±0.02mm
D-Shackle Connectors	Alloy Steel	Powder Coated	4.75 Ton Breaking Strength	±0.01mm

All components undergo Salt Spray Testing (ASTM B117) and First Article Inspection (FAI)

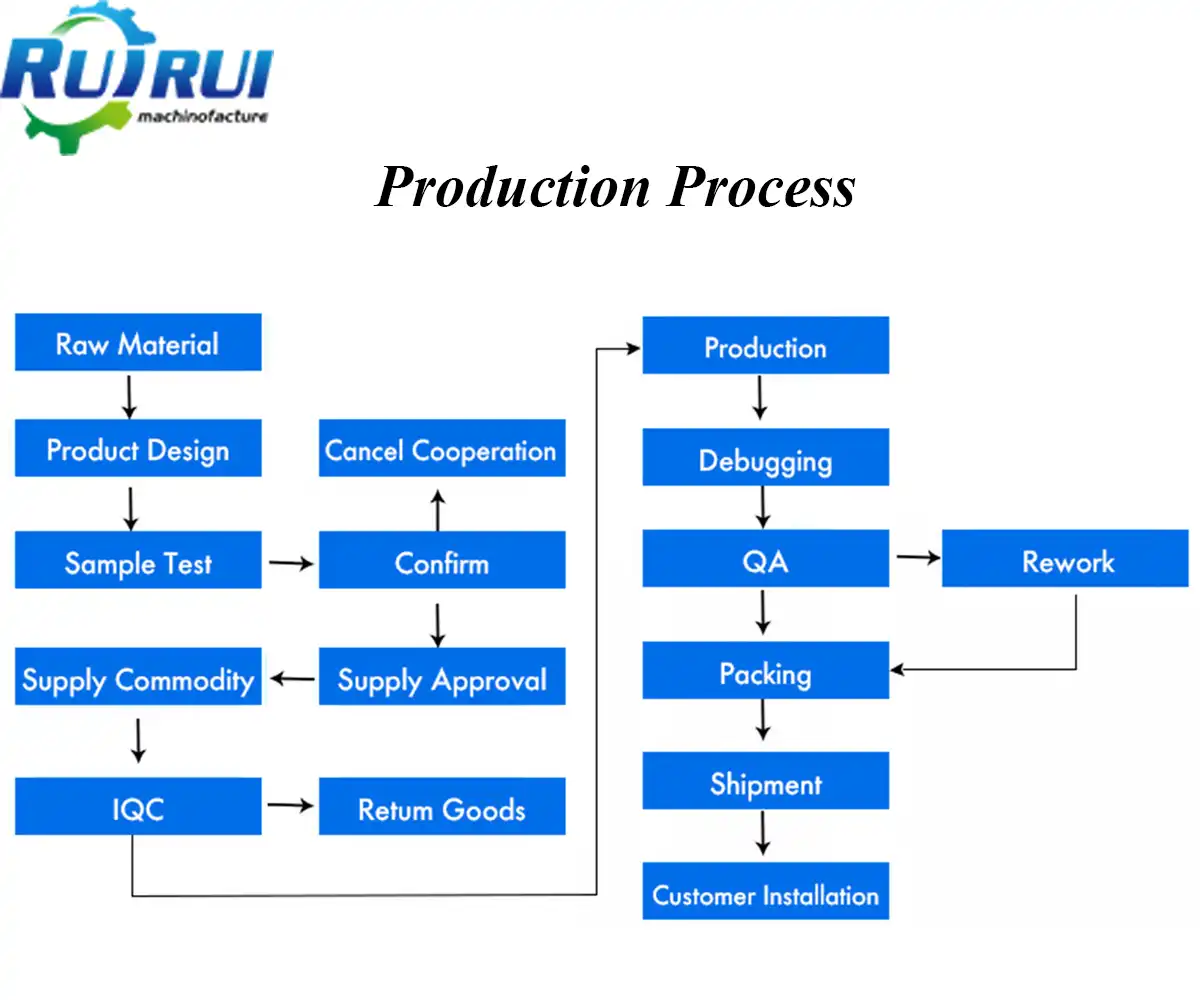

How Our Manufacturing Process Ensures Quality

Step 1: Precision CNC Machining

We process your anchor components on 3/4/5-axis milling centers. Complex geometries require tight tolerances.

Our Swiss-type lathes handle long, slender parts with L:D ratios up to 20:1. Live tooling completes parts in a single setup. You get faster turnaround without sacrificing accuracy.

Step 2: Multi-Layer Quality Control

Every batch goes through sampling per AQL standards. Our CMM equipment verifies dimensional accuracy.

Roughness testers check surface finish. Material certifications (MTC) accompany every shipment. You receive full PPAP and FAIR reports for audit trails.

Step 3: Tensile Strength Verification

Random samples undergo destructive pull-testing. A 2-ton rated sling must break at no less than 6 tons.

This isn't theoretical. We document every test result. Your product meets real-world demands, not just paper specifications.

Step 4: Finishing and Protection

Steel components receive zinc plating or powder coating. We verify coating thickness exceeds 10 microns.

This protects against rust in maritime and humid environments. Polyester slings get UV-resistant treatment to prevent degradation under sun exposure.

Real-World Applications

Forestry and Logging Operations

Dense woodlands demand flexible anchoring. Our tree-mount systems with 360-degree swivel capability let you reposition loads without moving the anchor.

Wide polyester slings distribute pressure across bark. Your trees stay healthy while you extract logs safely. Operators work in safe zones while the winch self-aligns around obstacles.

Search and Rescue Missions

Cliffside recoveries require lightweight, portable solutions. Our tripod adapters and rock-bolt anchor plates establish secure stations for raising litters.

You carry modular components by foot to areas where vehicles can't reach. High-angle operations demand equipment you can trust. Our systems deliver that confidence.

Electrical Utility and Cabling

Urban cable pulling often lacks natural anchor points. Our hitch-plate anchors attach to service vehicles or ground-driven piling anchors.

You maintain consistent horizontal pull force that meets cable manufacturer tension specifications. Setup in concrete environments becomes straightforward and repeatable.

Automotive Recovery

Stuck vehicles in mud or sand need stable pulling points. Vehicle-mounted anchors won't work when you're the one stuck.

Portable systems give you flexibility. Anchor to another vehicle, a tree, or ground stakes. The Anchoring System for Portable Winch provides counter-force without requiring a secondary heavy vehicle.

Why Global Clients Choose Qingdao RuiRui

Source Factory Advantage

No middlemen means direct communication with engineers. You get faster responses to technical questions.

Our 24/7 production capacity with 3-shift operation ensures15% faster lead times. Urgent orders ship on time70% more oftenthan industry averages.

Zero MOQ for Prototypes

Testing new designs shouldn't require massive investment. We support prototype development without minimum order quantities.

Upload your CAD files (STEP, IGES, X_T) for free DFM analysis. Get pricing and lead time within 48 hours. Prototypes ship in 1-2 weeks.

IP Protection Guaranteed

Your designs stay confidential. We sign NDAs and maintain secure data rooms.

With 20 years serving international clients, we understand the importance of intellectual property protection. Your competitive advantage remains yours.

Complete Documentation

Every shipment includes material certifications, dimensional reports, and test records. You satisfy audit requirements without chasing paperwork.

Our ISO 9001:2015 certification proves our commitment to systematic quality management.

FAQ

Q: Can I use the system for overhead lifting?

A: Most anchoring systems are rated for horizontal pulling only. Overhead lifting requires hoist-rated certification. Contact our engineering team to discuss vertical lift configurations that meet safety standards.

Q: How does soil type affect ground anchor performance?

A: Ground anchors perform best in compacted clay. Sandy or saturated soil reduces shear resistance. We recommend tandem anchoring configurations in loose soil conditions to distribute load safely.

Q: Will tree slings damage bark?

A: No. Our professional-grade slings use wide, flat polyester webbing. This distributes pressure evenly and protects the tree's cambium layer from abrasion during pulling operations.

Q: When should I retire my anchoring sling?

A: Replace slings showing more than 10% visible fiber damage, chemical staining, or exposed internal wear-indicator threads. Regular inspection prevents equipment failure during critical operations.

Q: Are your systems compatible with all winch brands?

A: Yes. Most components use universal interfaces like 50mm hitches or standard D-shackles. This ensures compatibility across major portable winch manufacturers without custom adapters.

Q: What's your lead time for custom orders?

A: Custom prototypes ship in 1-2 weeks. Mass production typically requires 4-7 weeks depending on complexity and order volume. Rush services available for urgent projects.

Contact Us

Ready to upgrade your rigging operations with Anchoring System for Portable Winch? Reach out to our engineering team today:kshdhardware@qdkshd.com
