Wire Lock Lynch Pins

Wire Lock Lynch Pins - Heavy-Duty Quick-Release Fasteners for Industrial Applications

Qingdao Ruirui Machinery Manufacturing Co., Ltd. delivers precision-engineered Wire Lock Lynch Pins manufactured from high-grade stainless steel with zinc plated surface finishing. With over 17 a long time of manufacturing plant involvement and ISO9001:2015 certification, our customized cotter stick arrangements serve requesting rural, development, and transport businesses. Each stick experiences strict dimensional review with resistances of ±0.01mm, guaranteeing dependable execution in Review 3 complex situations. Our one-stop generation capability—from crude fabric obtainment to wrapped up item testing—guarantees steady quality. Items are transported all inclusive in PP sacks, wooden boxes, or beds as per your prerequisites, with factory-direct estimating advertising 20-30% fetched reserve funds compared to exchanging companies.

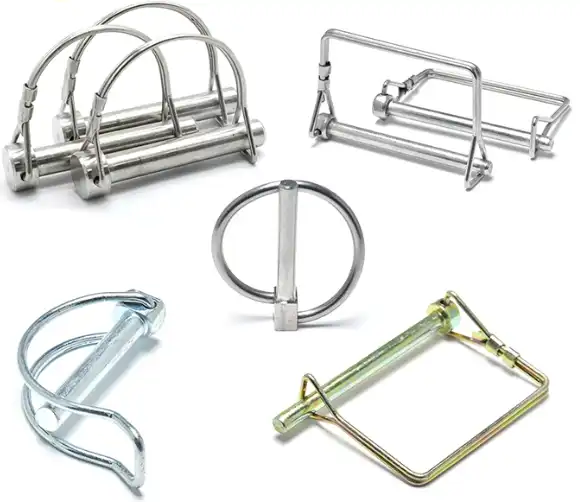

What Are Wire Lock Lynch Pins and Why They Matter

The items combine the usefulness of conventional lynch pins with an coordinates wire circle maintenance framework. This inventive plan kills the require for isolated cotter pins, diminishing get together time and anticipating component misfortune amid field operations.

The wire circle pulls over the stick head to bolt safely. It too slides off rapidly when you require to disengage hardware. This one-piece development demonstrates important in situations where laborers wear gloves or work in low-visibility conditions.

Unlike strung clasp, these pins stand up to shear strengths without requiring devices. You basically embed the shaft through adjusted gaps and secure the wire circle. This makes them perfect for applications requiring visit dismantling, such as tractor actualizes and trailer couplings.

Technical Specifications and Material Properties

Our stainless steel material offers superior corrosion resistance compared to carbon steel alternatives. The zinc plating adds an extra protective layer for applications in humid or chemically exposed environments.

Square wire loops provide enhanced grip strength. The flat contact surface resists side-load opening better than round wire profiles, particularly under vibration conditions.

Industrial Applications and Performance Environments

Wire Lock Lynch Pins are ubiquitous in sectors requiring frequent modular assembly.

Agricultural 3-Point Hitch Systems: These pins secure plows, mowers, and balers to tractor linkage arms. They must perform in Grade 3 complex environments involving mud, slurry, and extreme chassis vibration without unlatching. The quick-release mechanism saves farmers valuable time during implement changes.

Industrial Construction Scaffolding and Mining: Used in the locking joints of adjustable telescoping legs and heavy-duty conveyor systems. Here, the sheer strength of the pin and impact resistance of the wire loop meet OSHA compliance standards. Worker safety depends on these fasteners maintaining integrity under dynamic loads.

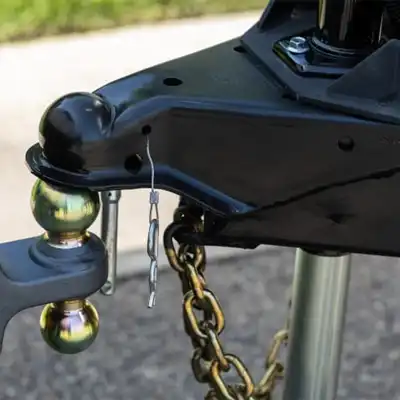

Heavy Transport and Trailer Couplings: Securing pintle hook latches, ramp gates, and jockey wheels requires fasteners that withstand corrosive road chlorides. Our products remain operable even when exposed to freeze-thaw cycles and road grime contamination.

The wire mechanism continues functioning where traditional cotter pins would seize or break. This reliability reduces maintenance costs and prevents equipment downtime.

Manufacturing Excellence and Quality Control

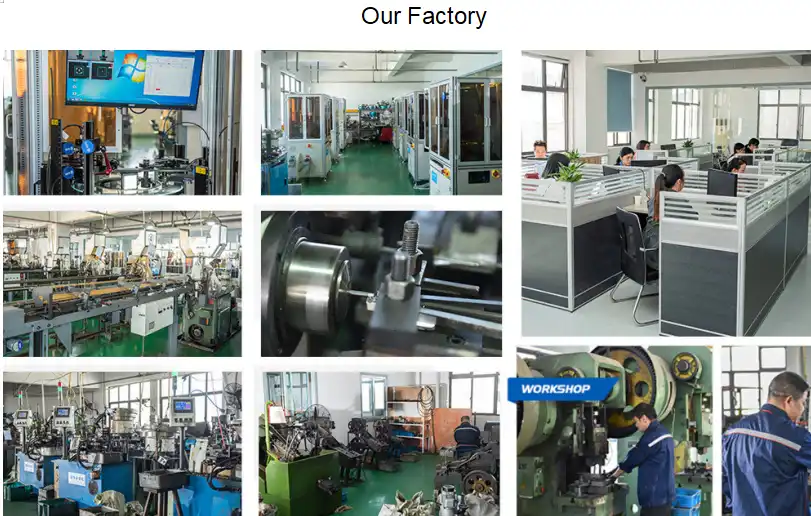

Qingdao Ruirui operates 20+ CNC machines including multi-axis turning centers. Our Swiss-type lathes handle complex geometries with L:D ratios up to 20:1, perfect for producing precision-ground pin shafts.

Every production batch follows strict quality protocols. Raw materials undergo composition analysis and certification verification. During machining, our operators perform in-process dimensional checks using CMM equipment and optical comparators.

The spring steel wire receives proper heat treatment to maintain memory. This prevents wire fatigue—a common failure mode where improper tempering allows the loop to float open under vibration. We validate spring tension on sample units before shipping.

Final inspection includes 100% visual examination and batch sampling per AQL standards. You receive full dimensional reports and material certifications (MTC) with each order. Our ISO9001:2015 certified facility ensures consistent manufacturing standards across all product lines.

First article inspection (FAI) documentation is available for OEM clients. This supports your incoming quality control processes and regulatory compliance requirements.

Customization Capabilities and OEM Support

Our dedicated R&D team assists with design-for-manufacturability (DFM) analysis. Upload your CAD files in STEP, IGES, or X_T format for free engineering review within 48 hours.

We customize pin diameter, shaft length, wire gauge, and loop configuration. Surface treatments extend beyond zinc plating to include passivation for marine environments and black oxide for aesthetic requirements.

Handle styles vary from round to square profiles. Some applications benefit from ergonomic grips that facilitate gloved operation. We'll optimize handle geometry based on your specific use case.

Zero MOQ policy supports prototype development. Whether you need 10 pieces for testing or 10,000 units for production, our flexible manufacturing accommodates your project timeline.

Production lead times range from 1-2 weeks for prototypes to 4-7 weeks for mass orders. Rush services are available—70% of urgent orders ship on schedule through optimized production planning.

Wire Lock Lynch Pins All designs remain protected under strict NDA agreements. Our secure data rooms ensure your intellectual property stays confidential throughout the collaboration process.

Critical Selection Factors for B2B Buyers

Material Selection: Standard zinc-plated pins suit general industrial environments. For saline or coastal applications, specify passivated 316 stainless steel. This prevents galvanic corrosion and seizing that compromise fastener removal.

Wire Profile: Square wire loops deliver superior lock strength under lateral loads. Round wire offers easier insertion in tight-tolerance holes. Match the profile to your vibration exposure and access constraints.

Load Ratings: Verify shear capacity matches your application forces. Remember these pins resist lateral retention forces—they are not rated for tensile lifting of overhead loads. Using them for lifting applications creates serious safety hazards.

Environmental Factors: Consider temperature extremes, chemical exposure, and UV degradation. We can recommend material upgrades and surface treatments that extend service life in harsh conditions.

Compliance Requirements: Reference DIN 11023 for dimensional standards in RFQs. This ensures compatibility with existing equipment and simplifies vendor comparisons.

Proper specification prevents field failures and warranty issues. Our engineering team provides application-specific recommendations based on your operating environment.

Packaging and Global Shipping Solutions

We offer flexible packaging tailored to your logistics needs. Standard options include PP bags for small quantities, wooden boxes for medium orders, and pallet configurations for bulk shipments.

Custom packaging accommodates specific labeling, sorting, or kitting requirements. We support just-in-time delivery schedules that synchronize with your production lines.

Shipping terms include EXW, FOB, and DDP arrangements. Our proximity to Qingdao Port—one of China's largest container terminals—ensures competitive freight rates and reliable departure schedules.

Export documentation includes commercial invoices, packing lists, and certificates of origin. Material test certificates (MTC) and PPAP documentation accompany OEM orders requiring full traceability.

International clients benefit from our 17+ years of export experience. We navigate customs regulations and harmonization codes to minimize clearance delays.

FAQ

Q: What is the difference between round wire and square wire on the product?

A: Square wire loops provide a flatter contact surface against the pin head, often resulting in stronger lock engagement and higher resistance to side-load opening compared to round wire profiles. Square wire performs better in high-vibration environments.

Q: How do the products perform in saline environments?

A: Standard zinc-plated pins will corrode eventually. For marine or coastal B2B applications, we strictly recommend passivated 316 stainless steel pins to prevent galvanic corrosion and seizing. This ensures long-term operability in chloride-rich atmospheres.

Q: Why did the wire loop pop off the pin head during operation?

A: This indicates wire fatigue or improper heat treatment. If spring steel lacks memory, vibration allows the loop to float open. Ensure your supplier adheres to spring-temper specifications and performs proper heat treatment validation.

Q: Can these pins be used for lifting overhead loads?

A: No. The products are designed for shear retention—holding parts together laterally—not for tensile lifting. They function as retaining elements, not lifting hardware. Using them overhead violates safety standards.

Q: What ISO/DIN standard should I reference for RFQs?

A: DIN 11023 is the industry-standard specification for linch pins, defining dimensions and material requirements for agricultural and general engineering use. Referencing this standard ensures consistency across suppliers.

Q: What's the difference between a hitch pin and a lynch pin?

A: Some hitch pins feature round or square handles for ergonomic removal. Lynch pins focus specifically on resisting shear forces to prevent components from sliding off axles. Both secure objects but differ in handle design and primary function emphasis.

Q: How do I prevent pin loss in the field?

A: The integrated wire loop design eliminates separate cotter pins that fall off during operation. The one-piece construction keeps all retention components attached, even when the pin is removed for maintenance.

Contact Us

Ready to source reliable Wire Lock Lynch Pins that perform in your toughest applications? Our engineering team provides expert consultation and fast quotation turnaround. Contact us today at kshdhardware@qdkshd.com for technical specifications and competitive pricing.
