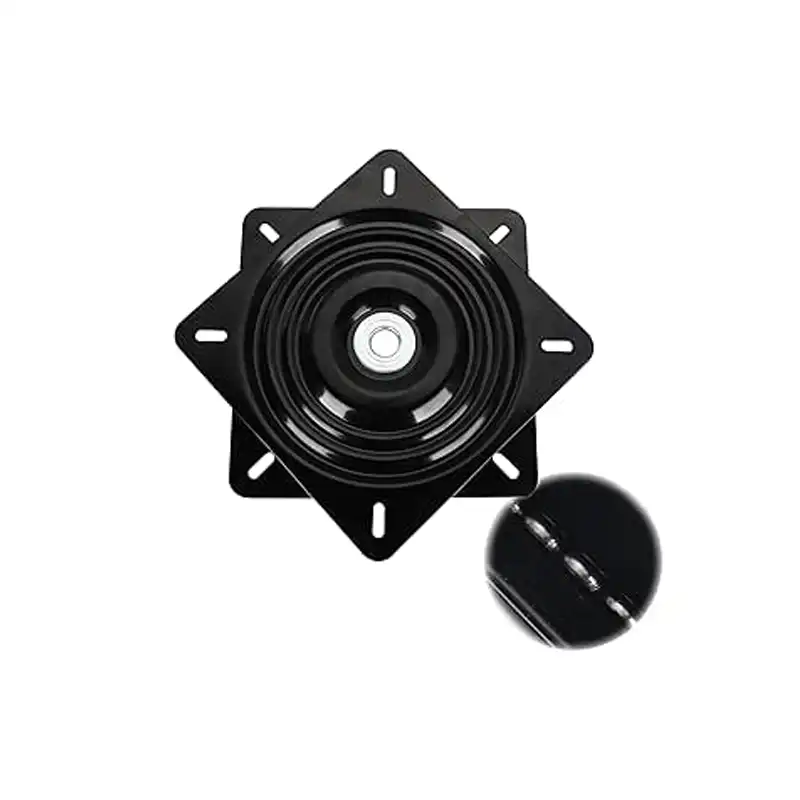

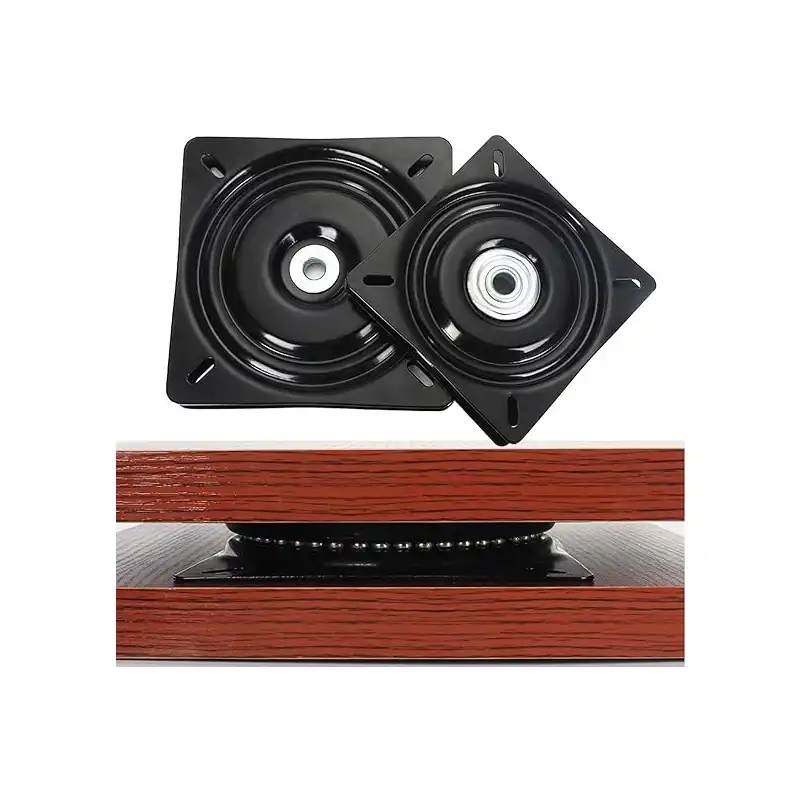

Automatic rebound stool rotary base turntable

Automatic Rebound Stool Rotary Base Turntable - Professional Grade Swivel Solution

Qingdao RuiRui's Automatic rebound stool rotary base turntable delivers enterprise-level performance with 200kg+ static load capacity and 50,000-100,000 cycle durability testing. Manufactured from 2.0-3.0mm cold-rolled carbon steel with full-circuit ball bearing tracks (40-50 steel balls), our turntable features high-tensile torsion springs that ensure your stools return to neutral position every time. With ±0.005mm CNC machining tolerances and ISO 9001:2015 certification, we've engineered this component for commercial environments where visual uniformity and safety matter. Our factory-direct pricing saves you 20-30% compared to traders, while our 17+ years of OEM/ODM expertise guarantees consistent quality from prototype to mass production.

What Makes Our Swivel Base Different?

Traditional swivel plates let stools spin freely in any direction. That creates messy spaces and safety risks.

Our solution changes that completely.

The Automatic rebound stool rotary base turntable uses precision spring-back technology. When someone stands up, the seat automatically rotates back to center. No manual adjustment needed. No visual chaos in your space.

Here's what that means for you:

Consistent Appearance: Every stool faces forward automatically. Your bar, restaurant, or showroom always looks organized.

Space Efficiency: Stools don't block aisles when customers leave. Staff can move freely without constantly straightening furniture.

Enhanced Safety: Limited rotation range (90° or 180°) prevents free-spinning accidents. Perfect for marine applications, RVs, or moving environments.

Reduced Maintenance: Self-centering mechanism eliminates the need for staff to realign furniture throughout the day.

Technical Specifications

Parameter	Specification
Brand	Ruirui
Material	Carbon Steel (Cold-Rolled A3)
Plate Thickness	2.0-3.0mm
Bearing System	Full-circuit ball bearing (40-50 steel balls)
Load Capacity	200kg+ static load rating
Rotation Range	90° or 180° (customizable)
Return Mechanism	High-tensile torsion spring
Surface Treatment	Powder coating / ED coating
Machining Tolerance	±0.005mm (CNC precision)
Durability Testing	50,000-100,000 return cycles
MOQ	1,000 pieces
Certification	ISO 9001:2015

Where You'll Use This Hardware

Hospitality & Entertainment

High-end hotels, casinos, and bars benefit most from automatic alignment. When hundreds of stools need to maintain visual standards, our turntable eliminates housekeeping labor. Your gaming floors and bar counters stay pristine without constant manual adjustment.

Marine & Mobile Applications

Yachts, cruise ships, and RVs face unique challenges. Uncontrolled spinning seats become hazards during transit or rough waters. Our self-centering base locks seats in predictable positions, preventing aisle obstruction and ensuring passenger safety.

Medical & Laboratory Settings

Dentists and lab technicians stand and sit constantly throughout their workday. Our turntable ensures chairs return to optimal positions automatically. That minimizes reseating accidents and improves workflow efficiency.

Conference & Educational Spaces

Seminar rooms and training facilities maintain professional appearance effortlessly. When sessions end, all seats face forward automatically, ready for the next group.

Engineering Quality You Can Trust

We don't just manufacture hardware. We engineer solutions.

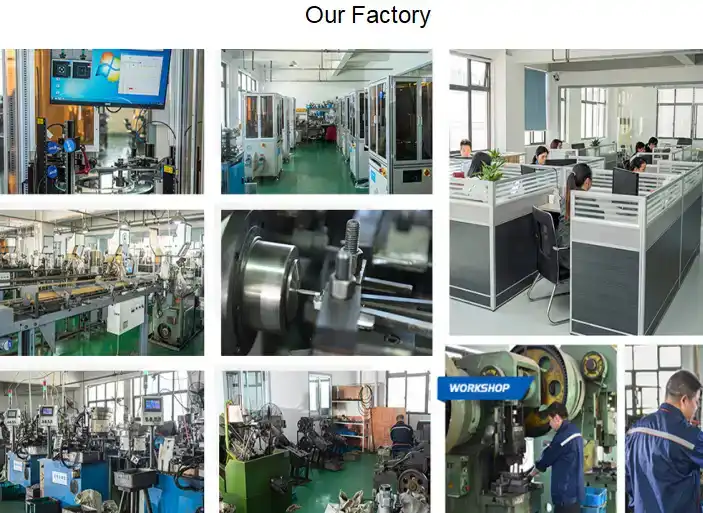

Precision CNC Machining

Our 20+ CNC machines maintain ±0.005mm tolerances. That precision ensures smooth rotation and eliminates wobble. Each plate undergoes multi-axis processing for perfect coaxial alignment.

Rigorous Testing Protocol

Every batch passes four critical quality checks:

1. Cyclic Durability Test: Robotic testing through 50,000-100,000 rotation cycles. We verify spring tension remains consistent without plastic deformation.

2. Static Load Testing: Validates 200kg+ capacity. Ball bearings must withstand vertical loads without race indentation or seizing.

3. Rebound Torque Verification: Engineers measure Newton-meter force. Strong enough to rotate heavy upholstered seats, gentle enough to prevent violent snap-back.

4. Wobble Check: Gap tolerance between plates must meet strict coaxial standards. Zero rocking when users shift weight.

Complete Quality Documentation

You receive material certifications, dimensional reports, and first article inspection records with every order. Our ISO 9001:2015 certification guarantees consistent processes from raw material to finished product.

Why Manufacturing Partners Choose RuiRui

Factory-Direct Advantages

We're in charge of the whole creation process. You can save 20–30% on costs when there are no middlemen. Because we are close to Qingdao Port, foreign shipping is easy, and we offer EXW, FOB, and DDP terms.

One-Stop Production Capability

Everything is done in-house, from getting the raw materials to CNC cutting, powder coating, putting the parts together, and testing the quality. You can get leads faster and keep an eye on quality better with that connection.

Flexible Production Scale

You need prototypes? We deliver in one to two weeks, and there are no minimum order quantities for development. Are you ready for mass production? Our business is open 24 hours a day, seven days a week, and can handle orders of 1,000 to 100,000+ pieces, with shipping times of 4 to 7 weeks.

Engineering Support

Design-for-manufacturability (DFM) research is free from our R&D team. Use STEP, IGES, or X_T to send CAD files. Inside of 48 hours, you'll get pricing and expert advice.

Material & Finish Options

Base Material: High-grade carbon steel provides optimal strength-to-weight ratio for commercial applications.

Surface Treatments:

· Powder coating in custom colors

· Electrophoresis (ED coating) for superior corrosion resistance

· Both options exceed 24-hour salt spray testing standards

Customization Available: We adjust rotation ranges, load capacities, and dimensions to match your specific furniture designs.

FAQ

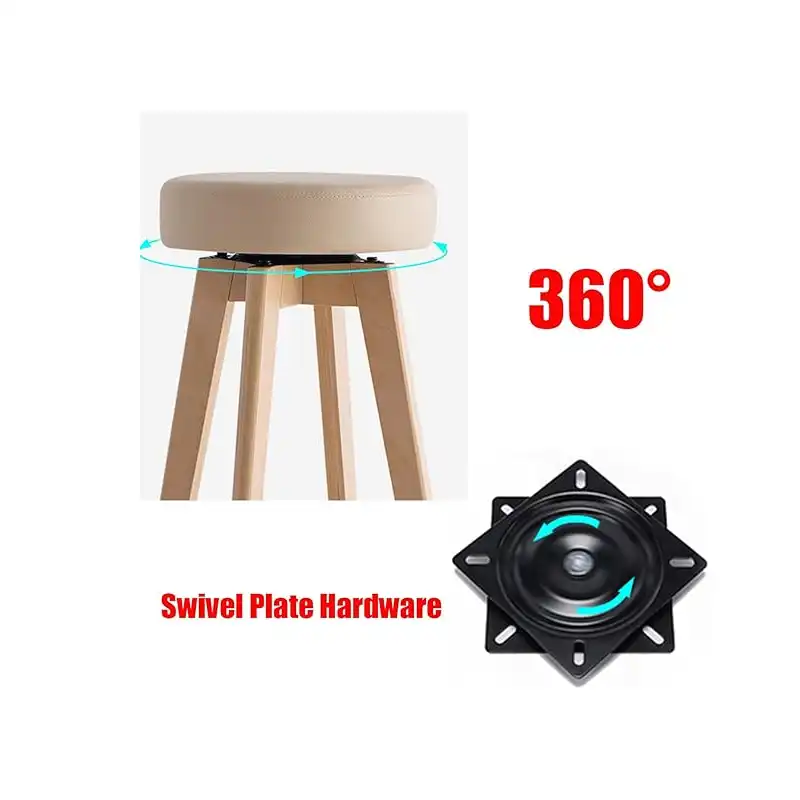

Q: What's the difference between this and a standard swivel plate?

A: Standard plates allow 360° free rotation. Our product uses spring mechanisms to automatically return seats to center position when unoccupied. It also limits rotation to 90° or 180° for safety.

Q: How long does the spring mechanism last?

A: Our torsion springs undergo 50,000-100,000 cycle testing without losing tension. In typical commercial use (20-30 cycles daily), expect 5-10 years of reliable operation.

Q: Can you customize the return force?

A: Yes. We adjust spring tension based on your seat weight and desired return speed. Our engineering team calibrates torque during the quotation process.

Q: What's your minimum order quantity?

A: 1,000 pieces for production orders. We offer prototype development with zero MOQ for design validation.

Q: Do you provide samples before bulk orders?

A: Absolutely. We recommend ordering 2-5 samples to test fit, finish, and performance with your stool designs. Samples ship within 1-2 weeks.

Q: How do I know this will fit my stool base?

A: Send us your technical drawings or dimensions. Our engineering team provides free compatibility analysis and suggests modifications if needed.

Q: What certifications do you have?

A: Our facility holds ISO 9001:2015 certification. We provide material certifications (MTC), dimensional reports, and PPAP documentation for OEM clients requiring compliance verification.

Q: Can this work with different stool materials like wood or plastic?

A: Yes. The turntable mounts between any seat material and base structure. We recommend appropriate fastener specifications based on your materials during the design review.

Contact Us

Ready to improve your furniture's functionality and appearance with Automatic rebound stool rotary base turntable? Our engineering team is here to help you find the perfect swivel solution. Contact us atkshdhardware@qdkshd.com for quotes and technical support today.
