Wall mount bracket for street lights

Wall Mount Bracket for Street Lights - Professional Lighting Infrastructure Solutions

Qingdao RuiRui Machinofacture Co., LTD delivers enterprise-grade mounting solutions, including the wall mount bracket for street lights, with ±0.005mm machining tolerance, supporting EPA ratings of 2.0-3.0 sq. ft at 100mph wind speeds. With 20+ CNC machines and 17+ years of OEM/ODM experience, we manufacture custom steel and aluminum brackets through cutting-edge processes including 5-axis milling and Swiss-type turning. Our ISO 9001:2015 certified facility ensures 100% dimensional inspection and offers 20-30% cost savings compared to traditional suppliers. From prototyping to mass production, we provide one-stop solutions with delivery in 1-2 weeks for prototypes and 4-7 weeks for bulk orders.

What Makes Our Wall Mount Brackets Different?

You need more than just a piece of metal on your building. You need a structural component that keeps your lighting stable through storms, vibrations, and years of exposure.

Our brackets solve real problems. No ground excavation costs. No space wasted on poles in narrow streets. Just direct mounting to walls with proven mechanical stability.

Engineering Excellence in Every Bracket

Precision Manufacturing Process:

We use advanced CNC machining to create brackets that fit perfectly every time. Our multi-axis turning and milling capabilities handle complex geometries with ease.

Material Options Tailored to Your Environment:

· Hot-Dip Galvanised Steel: This type of steel is best for heavy-duty and long-lasting uses.

· 304 stainless steel is great for use outside in general

· 316 stainless steel is better at resisting chloride for sites near the coast.

· Aluminium alloy is a light material that can be used in salty air conditions.

Load-Bearing Performance:

Each bracket undergoes structural validation. We test against dynamic wind loads and verify EPA compatibility with your specific luminaire data sheets.

Technical Specifications

Parameter	Specification
Material Options	Steel, 304/316 Stainless Steel, Aluminum Alloy
Manufacturing Process	CNC Milling, CNC Turning, Cutting, Bending
Machining Tolerance	±0.005mm to ±0.01mm

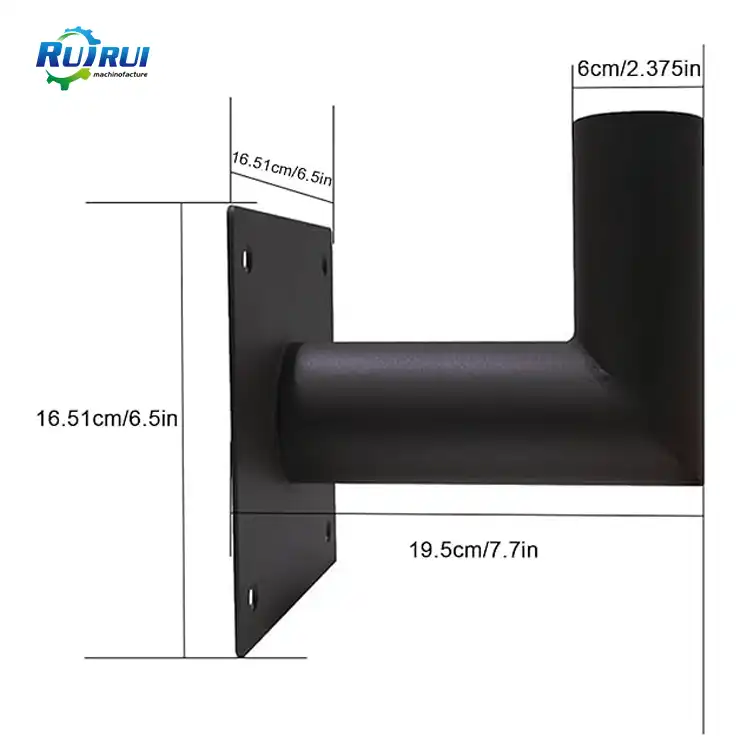

Standard Tenon Size	2-3/8 inches (60mm) O.D.
EPA Rating	2.0-3.0 sq. ft @ 100mph wind speed
Surface Treatment	Hot-Dip Galvanizing, Powder Coating, Anodizing
Arm Length	1-3 feet (customizable)
Customization	Full OEM/ODM support available
Quality Certification	ISO 9001:2015
Inspection	First Article Inspection (FAI), CMM, Optical Comparators
Production Capacity	24/7 operation with 3-shift system
Prototype Lead Time	1-2 weeks
Mass Production Time	4-7 weeks

Where These Brackets Make a Real Difference

Historic Urban Districts:

When your city streets are too narrow for traditional poles, our wall mount bracket for street lights uses existing building facades. You maintain required lux levels without blocking pedestrian pathways or disturbing underground utilities.

Industrial Facilities:

Mount high-output security lights directly on warehouse walls. Eliminate trenching costs. Remove dark spots from loading docks. Your perimeter security improves while installation costs drop.

Parking Structures:

Our brackets withstand the constant low-frequency vibrations from vehicles moving through concrete structures. They illuminate approach lanes and ring roads without taking up valuable parking space.

Coastal Installations:

Salt air destroys standard brackets within months. Our 316 stainless steel option provides molybdenum-enhanced resistance to chloride pitting, ensuring your investment lasts years longer.

Why Choose Ruirui for Your Lighting Infrastructure?

Factory-Direct Advantages:

You work directly with the manufacturer. No middlemen marking up prices. No communication delays. Just straightforward engineering support and competitive pricing.

Complete Quality Control:

Every bracket goes through multiple inspection stages. We verify dimensional accuracy with CMM equipment. Material certifications accompany each shipment. Your specifications are met, guaranteed.

Design Support:

Our R&D team provides free DFM (Design for Manufacturability) analysis. Send your CAD files. We optimize your design for strength, cost-efficiency, and manufacturing reliability.

Flexible Production:

Need one prototype? We build it. Need 10,000 units? We scale production seamlessly. Zero MOQ for development work means you test before committing to large orders.

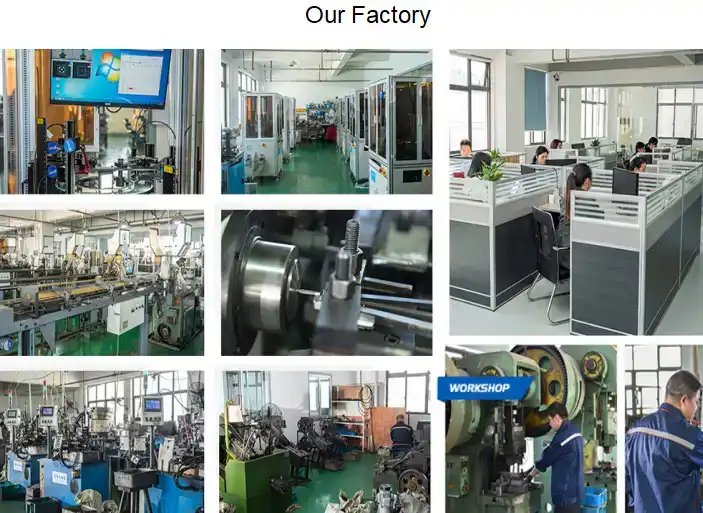

Our Manufacturing Process

Step 1: Design Review

You can upload STEP, IGES, or X_T CAD files. Within 48 hours, our engineering team looks at the structural needs and offers ways to make things better.

Step 2: Precision Machining

CNC cutting centers with 3/4/5 axes and Swiss-type lathes are used to make your brackets. Live tooling mixes milling and turning in one setup to get the most accurate results.

Step 3: Surface Treatment

Depending on the needs of your surroundings, we use hot-dip galvanising, powder coating, or anodising. We try each finish to see how well it sticks and how well it resists corrosion.

Step 4: Quality Verification

A first look at the item confirms all of its measurements. AQL standards are used for batch samples. Full-dimensional results show that your requirements have been met.

Step 5: Global Shipping

We have words like EXW, FOB, and DDP. Your brackets are safe during foreign shipping because they are packed in secure boxes.

FAQ

Q1: How do I determine the correct arm length for a products?

A: What you need for light overhang determines arm length. Arms normally extend 1–3 feet to minimise wall shadows and distribute Type III or IV light. Longer arms need wall strength testing.

Q2: What is the brackets' maximum EPA?

A: Our basic heavy-duty brackets sustain 2.0–3.0 sq. ft. at 100mph wind speeds. Always check the bracket's EPA rating against the luminaire's data sheet to avoid wind-induced failure.

Q3: Can siding or insulation have brackets?

A: No, brackets must anchor to structural masonry, concrete, or studs. Installing over compressible siding requires structural blocking or spacers to prevent anchor crushing and torque loss.

Q4: Are brackets equipped with mounting hardware?

A: It includes hardware to mount the light fixture to the tenon. Wall anchoring hardware (expansion bolts or lag screws) depends on your installation surface and is usually not provided.

Q5: How do I choose steel or aluminum brackets?

A: Steel's tensile strength makes it ideal for heavy fixtures and high winds. Coastal locations with salt-air corrosion benefit from aluminum.

Q6: Are angled wall brackets customizable?

A: Yes. Our bespoke engineering supports adjustable pivot joints or fixed-angle gussets to keep the light beam perpendicular to the road.

Q7: What is your brackets' wind speed rating?

A: Most professional brackets can survive 100mph winds. Hurricane-prone areas get higher scores.

Q8: Is 304 Stainless Steel coastal-friendly?

A: Due to its molybdenum concentration, 316 Stainless Steel resists chloride pitting better than 304 for beachside applications. Hot-dip galvanized steel is the most affordable and durable outdoor alternative.

Q9: How do you prevent galvanic corrosion when mounting aluminum fixtures to steel brackets?

A: Create a dielectric barrier between the metals with EPDM rubber gaskets or stainless steel washers.

The Ruirui Difference

Since 2008, we've manufactured precision components for lighting infrastructure worldwide. Our location near Qingdao Port ensures efficient shipping to your project sites.

We control the entire production chain. Raw material inspection. CNC machining. Surface treatment. Final testing. Your brackets meet specifications because we verify every step.

Our 24/7 production capacity with three-shift operation means your urgent orders ship on time. In fact, 70% of our rush orders meet accelerated delivery schedules.

You receive more than a product. You gain a manufacturing partner committed to your project's success.

Contact Us

Ready to discuss your lighting infrastructure project with wall mount bracket for street lights? Send your specifications to kshdhardware@qdkshd.com for a detailed quote within 48 hours.
