Trailer Hitch Tightener

Trailer Hitch Tightener – Professional Anti-Rattle Solution for Secure Towing

Our Trailer Hitch Tightener from Qingdao RuiRui Machinofacture Co., Ltd. eliminates hitch play with enterprise-grade precision. Engineered with ±0.005mm CNC machining tolerances, our stabilizer features heavy-gauge steel construction tested to withstand 500+ hours of salt spray (ASTM B117). With 17+ years of OEM manufacturing expertise and ISO 9001:2015 certification, we deliver anti-rattle clamps that maintain 35-45 ft-lbs torque retention across 1,000-mile vibration simulations. Minimum order quantity starts at 1,000 pieces with customizable electroplating and powder coating finishes. Our factory-direct model reduces costs by 20-30% while ensuring 100% dimensional inspection using CMM technology.

What Is a Trailer Hitch Tightener?

A hitch stabilizer serves as a mechanical solution to a common problem. You've probably noticed that gap between your receiver and ball mount. That's not a defect—it's a necessary tolerance for easy insertion. But here's the catch: that 1/16 to 1/8 inch clearance creates rattling during your drive.

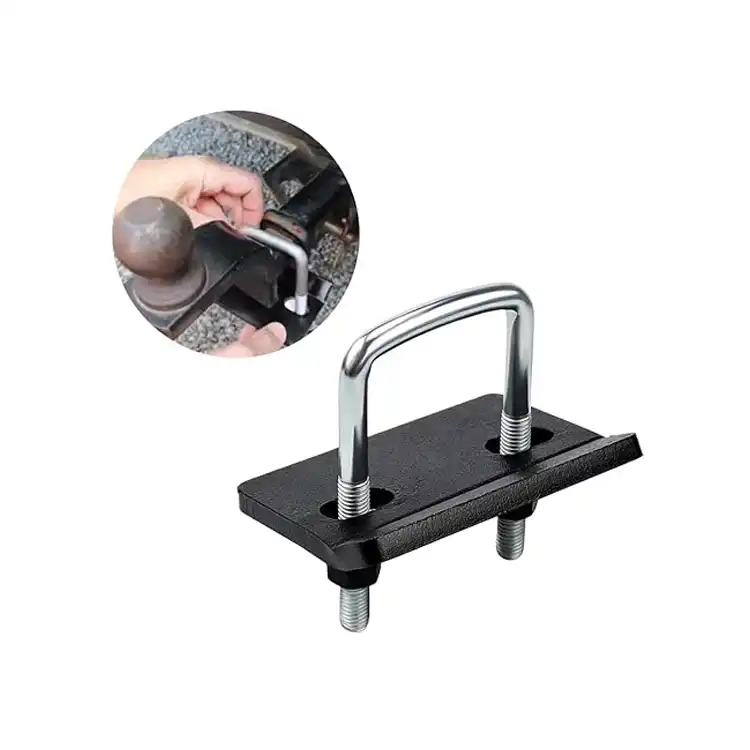

Think of our product as a precision clamp. It works by applying consistent pressure through a U-bolt and plate system. This creates static friction between metal surfaces. The result? Your multi-piece towing setup becomes one solid unit.

The science behind it matters. When you hit bumps, loose hitches transfer shock waves. These vibrations accelerate metal fatigue on your receiver pin hole. Our stabilizer stops this before damage occurs. It also protects delicate cargo like carbon fiber bikes from sudden G-force spikes.

You're essentially converting kinetic energy into controlled stability. No more metal-on-metal hammering. No more cabin noise that sounds like something's broken.

Why You Need This Solution

Let's talk about real-world scenarios where this device makes a difference.

For Bike Rack Users

Your bike rack acts like a leverage arm. Even small movement at the hitch multiplies at the far end. That's basic physics—the pendulum effect. Without stabilization, your expensive bikes wobble constantly. Our tightener arrests both vertical and lateral motion. Your cargo stays secure.

During Heavy Towing

When you brake hard with a boat trailer, the hitch experiences hammering force. That "slop" in the connection becomes a destructive impact. Each stop deteriorates your receiver tube slightly. A Trailer Hitch Tightener absorbs these dynamic shocks. Your equipment lasts longer.

Off-Road Adventures

Rough terrain creates torsional stress on your hitch. That clanking noise you hear? It mimics suspension problems and causes unnecessary worry. More importantly, recovery point inserts can rattle loose. Grit and mud accelerate wear. Our stabilizer prevents all of this.

You don't just reduce noise. You're preventing safety issues before they start.

Technical Specifications

Here's what makes our product stand out:

Parameter	Specification
Origin	Qingdao, China
Compatibility	1.25" and 2" receivers (Class I-IV)
Material	Heavy-gauge steel
Machining Tolerance	±0.005mm
Surface Treatment	Electroplating, Powder Coating
Torque Rating	35-45 ft-lbs
Corrosion Resistance	500+ hours salt spray (ASTM B117)
Minimum Order	1,000 pieces
Customization	Size and finish options available
Certification	ISO 9001:2015

Our Manufacturing Advantage

You're not buying from a middleman. You're working directly with the factory.

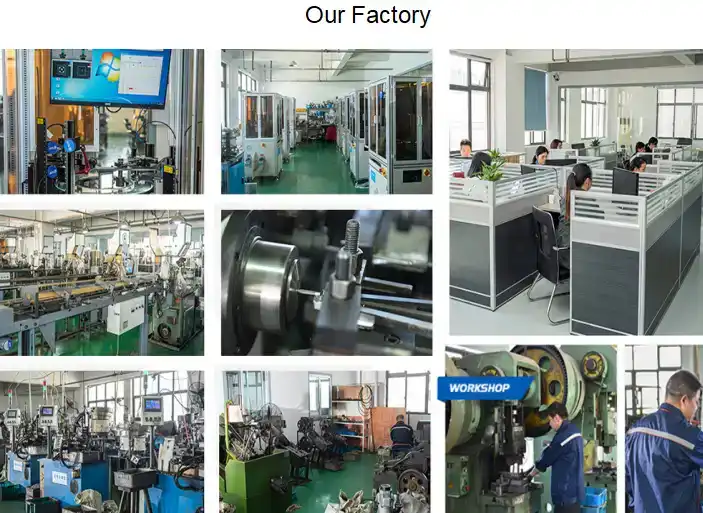

Precision CNC Machining

We operate 20+ CNC machines including 3/4/5-axis centers. Every component meets strict dimensional requirements. Our Swiss-type lathes handle complex geometries with repeatable accuracy. First article inspection confirms specs before production runs begin.

Quality You Can Measure

We conduct tensile and shear strength testing on every batch. The U-bolt won't snap under clamping loads. Our tightening plates remain flat at recommended torque. Rockwell Hardness testing ensures threads won't strip. Go/No-Go gauges verify thread pitch accuracy.

Salt fog testing reveals true durability. After 500 hours, our units show less than 5% red rust. That's the standard for winter climates.

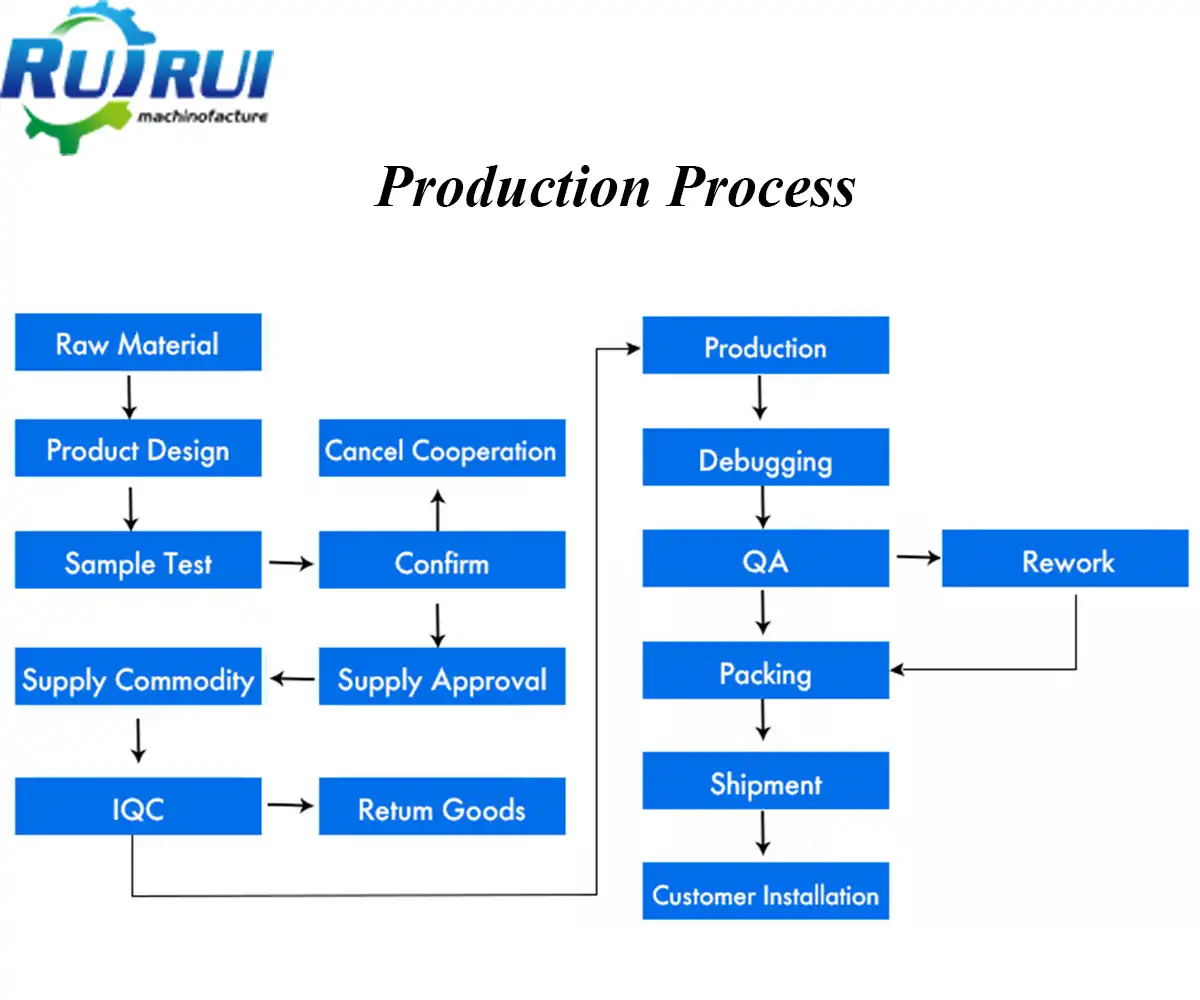

Complete Control

From raw material inspection to finished product testing, we manage every step. Our quality control system tracks each process. Only products meeting full standards reach you. This one-stop capability reduces lead times by 15% compared to competitors.

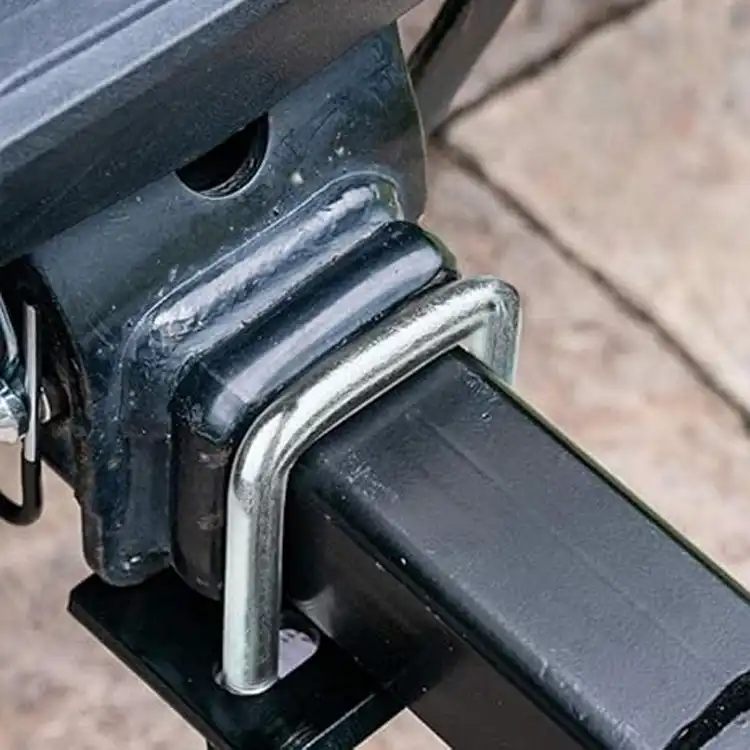

How to Use It Properly

Installation takes minutes, but doing it right matters.

First, slide your ball mount into the receiver. Don't insert the pin yet. Position the U-bolt over the receiver tube. The plate goes underneath (or on top—we'll explain that shortly).

Hand-tighten the nuts first. Make sure the U-bolt sits flush against the receiver lip. Now insert your hitch pin. Use a torque wrench to tighten to 35-45 ft-lbs. Don't exceed this—over-torquing bends the plate.

Should the U-bolt face up or down?

Both work equally well. Your vehicle determines the best choice. Low ground clearance? Point it upward to avoid driveway scrapes. Tight bumper clearance? Point it downward. The function remains identical.

One important clarification: this device does NOT increase your towing capacity. It's a stabilizer, not a structural reinforcement. Your vehicle's Gross Trailer Weight rating stays the same. Always follow manufacturer guidelines.

FAQ

Will this fit both 1.25-inch and 2-inch receivers?

Yes. Our universal design accommodates standard Class I/II (1.25") and Class III/IV (2") receivers through adjustable U-bolt geometry. For Class V commercial hitches (2.5" or 3"), you'll need a wide-stance unit. Contact us for specifications.

Does a product increase towing capacity?

Absolutely not. This is purely a stabilizer and noise dampener. It doesn't reinforce hitch welds or change your vehicle's Gross Trailer Weight or Tongue Weight ratings. Safety depends on following original equipment specifications.

Why does the plate bend during installation?

Slight deflection is normal. Significant bending means either poor material quality or over-torquing. Our heavy-gauge steel resists deformation. Always ensure the U-bolt is flush before final tightening. Use a torque wrench for consistency.

Can this device prevent hitch theft?

No. While it adds an extra step for removal, it's not a security device. Thieves with wrenches can remove it. For theft prevention, use a dedicated locking hitch pin alongside your products.

How do I know if it's installed correctly?

You should feel zero movement when you shake the ball mount. There should be no rattling sound. If you still hear noise, check torque specifications and ensure the U-bolt is properly seated.

Why Choose Qingdao RuiRui

We've been manufacturing precision hardware since 2008. Over 17 years, we've refined our processes to deliver consistent quality.

Our location near Qingdao Port simplifies logistics. You get faster shipping times and better communication. We offer EXW, FOB, and DDP terms to match your needs.

Factory-direct pricing saves you 20-30% compared to traders. No hidden markups. No middleman delays. Our 24/7 production capacity with three-shift operation ensures we meet your deadlines. Seventy percent of urgent orders ship on time.

We support OEM and ODM projects. Our engineering team provides design-for-manufacturability analysis at no cost. Upload your CAD files (STEP, IGES, X_T formats accepted). You'll receive pricing and lead time within 48 hours.

Prototypes ship in 1-2 weeks. Mass production takes 4-7 weeks. Real-time updates keep you informed throughout production.

Full documentation accompanies every order: material certificates, PPAP reports, and FAIR documentation for OEM clients. We protect your intellectual property with NDAs and secure data management.

Contact Us

Ready to eliminate hitch rattle with Trailer Hitch Tightener? Email us at kshdhardware@qdkshd.com for a free quote and DFM analysis today.
