Coupler Snap Pin 3/8" x 2 1/4"

Coupler Snap Pin 3/8" x 2 1/4" - Heavy-Duty Trailer Coupler Locking Pin

When you need reliable trailer coupling security, our Coupler Snap Pin 3/8" x 2 1/4" delivers professional-grade performance you can trust. Manufactured by Qingdao RuiRui Machinery Manufacturing Co., Ltd., this high-strength fastening device features precision-machined dimensions with tolerances as tight as ±0.005 mm. Our pins undergo rigorous shear load testing (9,000-12,000 lbs capacity) and salt spray testing per ASTM B117 standards. With 20+ CNC machines and ISO 9001:2015 certification, we ensure every pin meets strict dimensional accuracy of 0.375" (+0.000/-0.003") diameter. The spring-tensioned wire retainer provides tool-free installation while maintaining positive lock integrity through 5,000+ duty cycles. Factory-direct pricing delivers 20-30% cost savings compared to distributors.

What Is a Coupler Snap Pin 3/8" x 2 1/4"?

This specialized safety fastener solves a critical problem in trailer operations. You've probably experienced the frustration of cotter pins backing out during transport or struggling with frozen clevis pins at the worksite.

Our snap pin eliminates these headaches entirely.

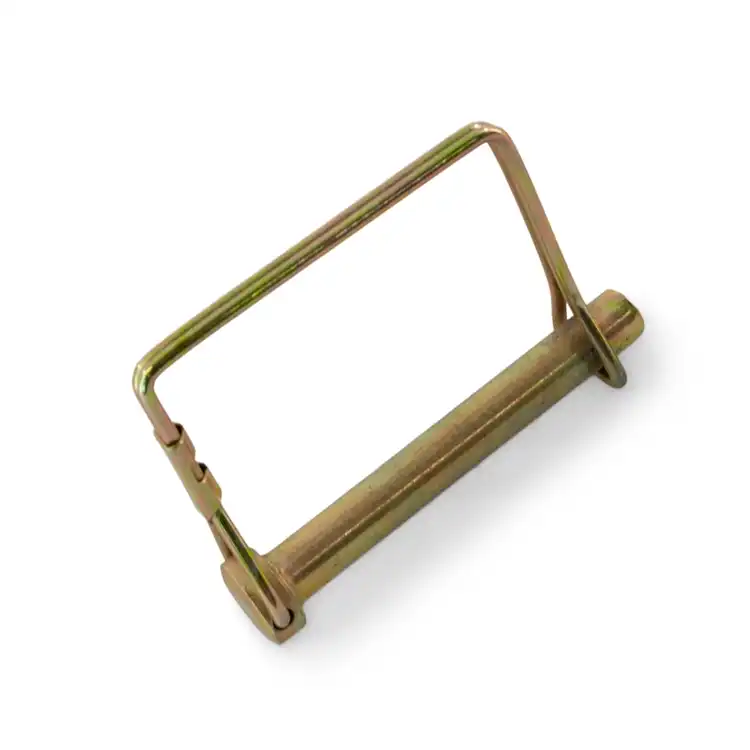

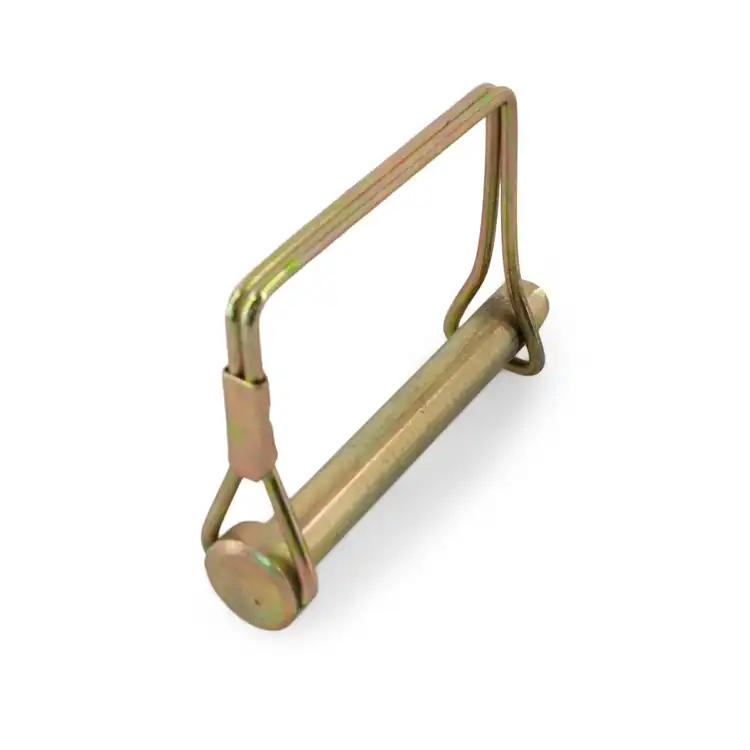

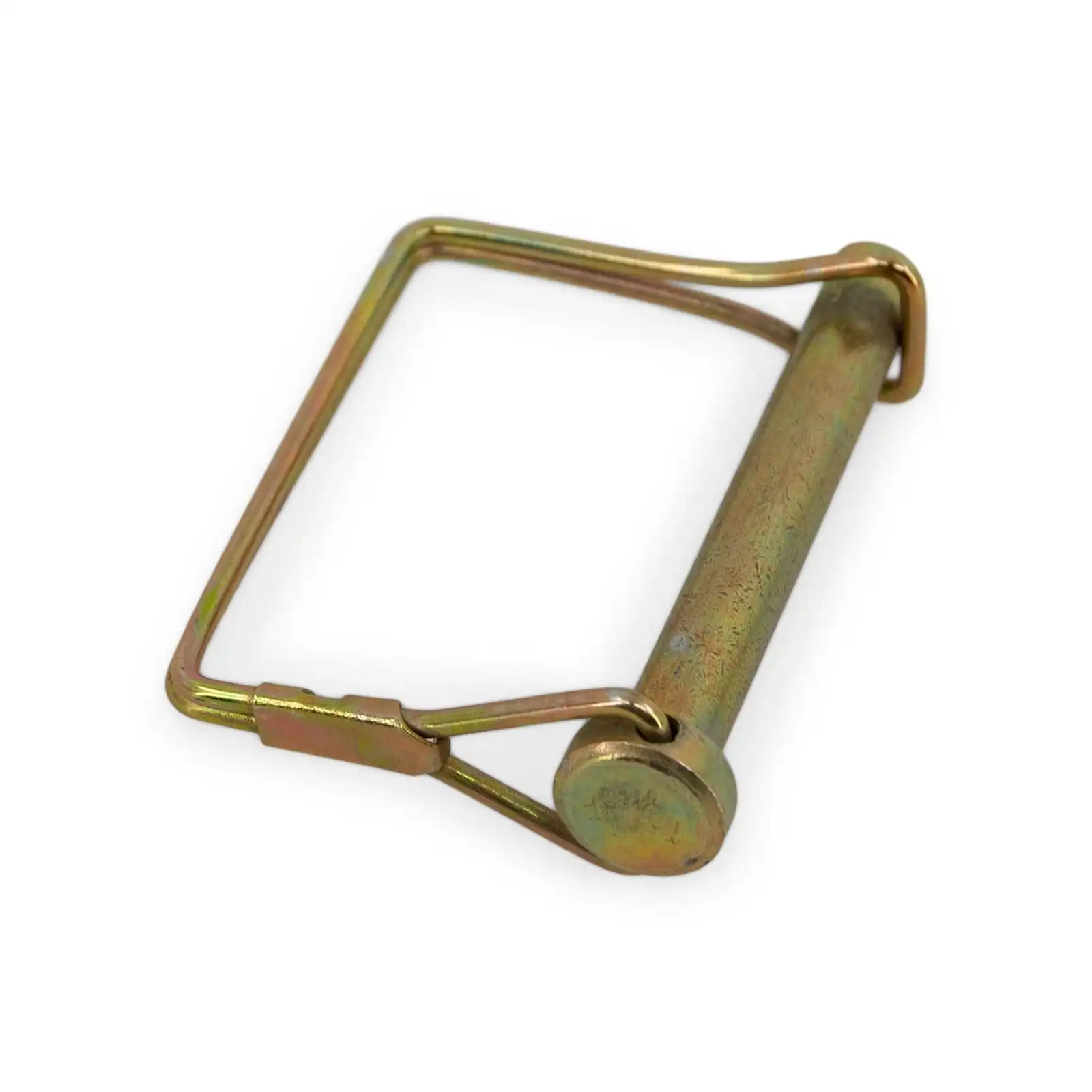

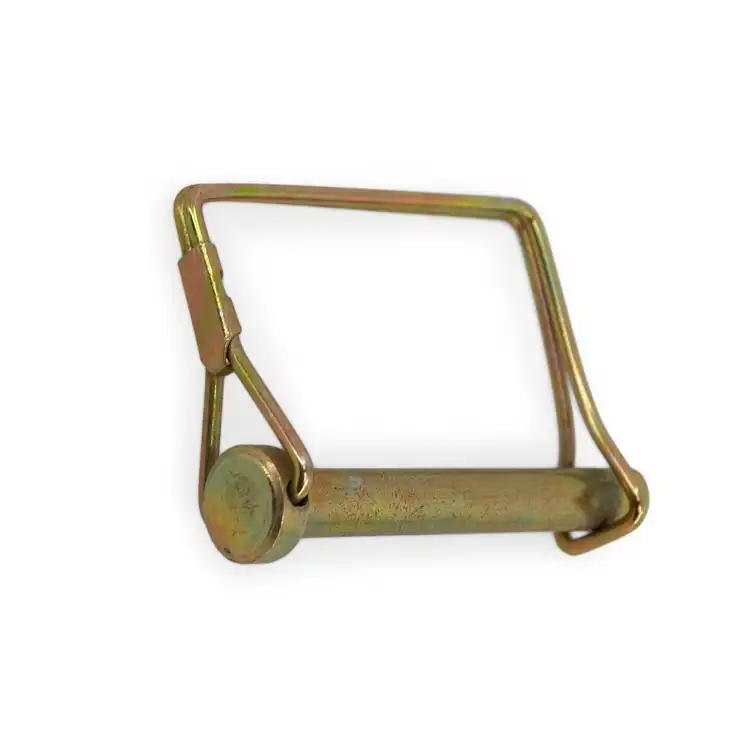

The design features a solid steel shank with integrated spring wire retainer. This wire loop snaps over the end, creating a positive lock that resists vibration-induced loosening. Unlike traditional cotter pins requiring pliers for removal, you can install and remove this pin bare-handed in seconds.

The 3/8-inch diameter fits standard Class I and II receiver holes. The 2-1/4 inch usable length (measured from under the head to wire latch) provides adequate thread engagement for most trailer couplers, pintle hitches, and PTO shafts.

Key applications include:

· Trailer coupler latch security

· Receiver hitch connections

· Agricultural implement attachment

· Jack stand positioning

· Towing equipment safety locks

This isn't just a pin. It's your insurance against catastrophic decoupling failures.

Technical Properties & Specifications

You deserve to know exactly what you're getting. Here's the complete specification breakdown:

Property	Specification	Standard/Notes
Shaft Diameter	0.375" (3/8")	Tolerance: +0.000/-0.003"
Usable Length	2.25" (2 1/4")	Head to wire latch point
Material Options	C1045/C1035 Carbon Steel, 304 Stainless Steel	Heat-treated for strength
Wire Loop Material	High-Carbon Spring Steel	Maintains tension 5,000+ cycles
Shear Strength	9,000-12,000 lbs (double shear)	Grade 2 carbon steel rating
Surface Finish	Zinc Plating (Clear/Yellow) or Custom	ASTM B633 Type II
Salt Spray Resistance	72+ hours	Per ASTM B117 testing
Hardness	HRC 45-50 (shaft)	Prevents brittleness & deformation
Working Temperature	-40°F to 400°F	Standard carbon steel version
Customization	Diameter, length, finish available	MOQ varies by specification

Why These Specs Matter to You

Precision diameter controlmeans the pin slides smoothly into your receiver hole without binding, yet fits snugly enough to prevent rattle.

Spring tension testingensures the wire retainer won't lose grip after repeated use. Cheap pins fail here after just dozens of cycles.

Salt spray certificationprotects your investment in coastal or winter road salt environments. Standard zinc plating provides months of corrosion resistance.

Material traceabilitythrough MTR (Material Test Reports) verifies chemical composition. This prevents dangerous brittle failures under impact loads.

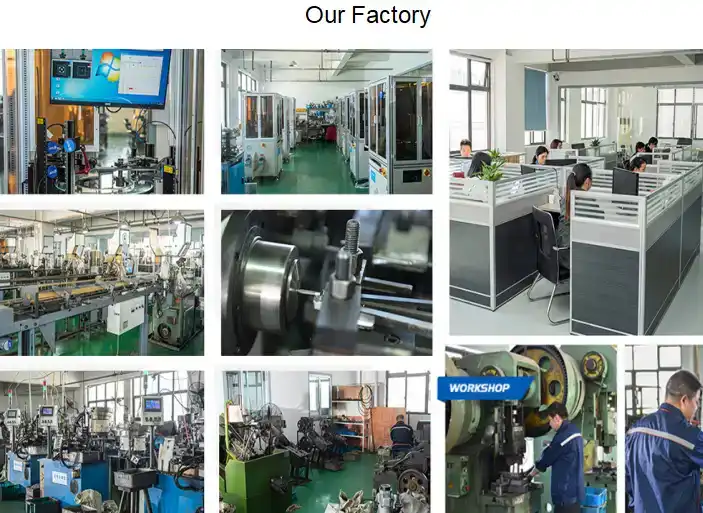

Manufacturing Excellence: Our Production Process

At Qingdao RuiRui, we control every step of production. No middlemen. No quality compromises.

Precision CNC Machining

Your pins start as premium-grade steel bar stock. Our 20+ CNC turning centers machine each shaft to exact 3/8" diameter specifications. Swiss-type lathes handle high-volume production with automated bar feeding, maintaining consistent quality across thousands of units.

Our five-stage quality control includes:

1. Dimensional Tolerance Testing– Calibrated micrometers verify diameter fits standard receiver holes without excessive play

2. Shear Load Testing– Each production batch undergoes transverse force testing to determine mechanical failure points

3. Spring Tension Testing– Wire snap mechanisms must maintain minimum retention force after 5,000 insertion cycles

4. Salt Spray Testing– ASTM B117 protocol validates plating thickness and corrosion resistance

5. Material Traceability– MTR documentation verifies chemical composition and hardness levels

Surface Treatment Options

We offer multiple finish options based on your environment:

· Clear Zinc Plating– Standard protection for general use

· Yellow Zinc Chromate– Enhanced corrosion resistance for harsh conditions

· 304 Stainless Steel– Marine-grade for coastal applications (recommend for saltwater exposure)

· Black Oxide– Decorative finish with moderate protection

· Custom Coatings– Available upon request for specialized requirements

One-Stop Production Capability

From raw material procurement through final packaging, everything happens under our roof. This vertical integration gives you faster lead times and better pricing than trading companies.

Typical production timeline:

· Prototypes: 1-2 weeks

· Production runs: 4-7 weeks

· Rush orders: 70% ship on time

Why Choose RuiRui's Coupler Snap Pin?

Factory-Direct Advantages

You're buying Coupler Snap Pin 3/8" x 2 1/4" from the source. Our facility in Qingdao operates 24/7 with three-shift production capacity. This eliminates distributor markups, saving you 20-30% compared to retailers.

What this means for your business:

· Lower per-unit costs on volume orders

· Faster response to custom specifications

· Direct communication with our engineering team

· Flexible minimum order quantities (zero MOQ for prototypes)

OEM/ODM Customization

Need non-standard dimensions? Our R&D team provides design optimization services.

Common customizations include:

· Extended lengths for thicker couplers (up to 4")

· Reduced diameters for lighter-duty applications

· Square-top heads for rectangular coupler housings

· 316 stainless steel for extreme corrosion environments

· Custom wire loop configurations

We'll work with your CAD files (STEP, IGES, X_T formats) and provide free DFM (Design for Manufacturability) analysis within 48 hours.

Certified Quality Systems

ISO 9001:2015 certification isn't just a certificate on our wall. It's embedded in our daily operations.

Every production batch includes:

· First article inspection (FAI) documentation

· Batch sampling per AQL standards

· Full dimensional reports with CMM measurements

· Material certification from steel suppliers

· PPAP and FAIR reports for automotive OEM clients

Installation & Usage Guidelines

Proper Installation Steps

Installing your snap pin correctly ensures maximum safety and longevity:

· Verify hole alignment– Coupler and receiver holes must align perfectly before insertion

· Insert shaft– Push pin through both coupler walls until wire loop emerges completely

· Engage wire retainer– Pull wire loop over shaft end until it snaps into locking position

· Visual confirmation– Wire should sit flush in the groove without gaps

· Function test– Attempt to push pin backward; it should not move more than 1/16"

Measuring for Correct Length

Many customers ask: "How do I know if 2-1/4" is sufficient?"

Here's the simple formula:

Required pin length = Coupler wall thickness + Receiver thickness + 1/8" minimum clearance

The usable length (head to wire snap point) must exceed your total coupler width by at least 1/8 inch. This ensures the wire retainer engages properly on the far side.

Maintenance Best Practices

Extend your pin's service life with these simple steps:

· Weekly visual inspection– Check for wire fatigue, shaft bending, or corrosion

· Clean before storage– Remove road grime that traps moisture

· Lubricate annually– Light oil on the shaft prevents seizing in receiver holes

· Replace if damaged– Never reuse pins with bent shafts or weakened wire loops

Safety Warnings

Critical limitations you must understand:

❌NOT rated for overhead lifting– These are lateral load fasteners only

❌Not a primary hitch mechanism– Always use as secondary safety lock

❌Not suitable for dynamic shock loads– Designed for static/vibration resistance

❌Inspect after impact– Replace immediately if trailer experiences collision

FAQ

What is the maximum shear capacity for a product?

Typical Grade 2 carbon steel double shear strength is 9,000–12,000 lbs. Material grade and heat treatment affect capacity. For essential applications requiring certified load ratings, contact our engineering team for specification papers.

Can I lift above with this pin?

No, these pins are secondary locking safety mechanisms for lateral stresses. They are uncertified for vertical overhead lifting. Lifting them can cause significant damage. Always use certified overhead lifting hardware.

Why chose a square-top snap pin over a circular one?

Agricultural equipment rectangular coupler housings have more clearance with square-top pins. Round-top shapes are aerodynamic and less likely to snag on bush or clothing. Based on your equipment, we can make either style.

Is the 2-1/4 inch length enough for my coupler?

Measure your coupler or tube assembly's breadth. Usable pin length (head to wire snap point) must exceed breadth by 1/8 inch. Pin works for couplers 2-1/8" or less thick. Extended lengths up to 4 inches are available for thicker assemblies.

Does zinc plating work for coastal or marine use?

Salt spray resistance is 72+ hours for standard zinc plating, suitable for occasional coastal exposure. We recommend upgrading to 316 stainless steel for continual saltwater or boat trailer use. This eliminates galvanic corrosion and lasts decades in tough sea conditions.

What distinguishes your pins from hardware store ones?

Three key differences: precision tolerances (±0.005mm vs. ±0.5mm for stamped hardware store pins), material traceability (MTR documentation verifies steel composition), and spring tension testing (5,000+ cycles vs. 100-500 for cheaper versions). You're buying reliability, not a pin.

Do you offer fleet bulk pricing?

Absolutely. Volume savings begin at 100 pieces and increase at 500, 1,000, and 5,000. OEMs and fleet operators receive personalised account management, custom packaging, and scheduled delivery. Send us your annual usage estimate for customised pricing.

Can you manufacture pins to a custom print or specification?

Yes. We offer custom diameter, length, head style, wire arrangement, and material choices for OEM/ODM. Send us CAD or technical drawings for a free DFM examination. Pricing and lead time quotes are available within 48 hours. Prototype development with zero MOQ lets you test designs before mass manufacturing.

Industries We Serve

Our trailer pins secure critical connections across diverse sectors:

Transportation & Logistics

· Commercial trailer fleets

· Utility trailers

· RV and camper hitches

· Car hauler safety chains

Agriculture

· Tractor implements

· PTO shaft connections

· Hay wagon couplings

· Livestock trailer latches

Construction

· Equipment trailers

· Dump trailer tailgate pins

· Scaffold locking mechanisms

· Portable light tower mounts

Marine & Recreation

· Boat trailer couplers

· Jet ski trailer locks

· Cargo carrier attachments

· Bicycle rack receivers

Global Supply Capability

Based in Qingdao with direct port access, we ship worldwide efficiently.

Shipping options include:

· EXW (Ex Works)– You arrange pickup from our facility

· FOB Qingdao– We deliver to port; you handle ocean freight

· DDP (Delivered Duty Paid)– Complete door-to-door service

International advantages:

· 50% cost savings vs. Western manufacturers

· 15% faster lead times through optimized planning

· IP protection with NDAs and secure data handling

· English-speaking engineering support via email

Typical ocean freight transit times: 20-30 days to North America, 15-25 days to Europe, 7-12 days to Australia.

Contact Us

Ready to secure your trailer operations with Coupler Snap Pin 3/8" x 2 1/4"? Our engineering team is standing by to assist with specification selection and custom requirements.

Contact us now:kshdhardware@qdkshd.com for pricing and lead times within 48 hours.
